3 Sheave Nylon Pulley Block For 3 Bundle Conductors

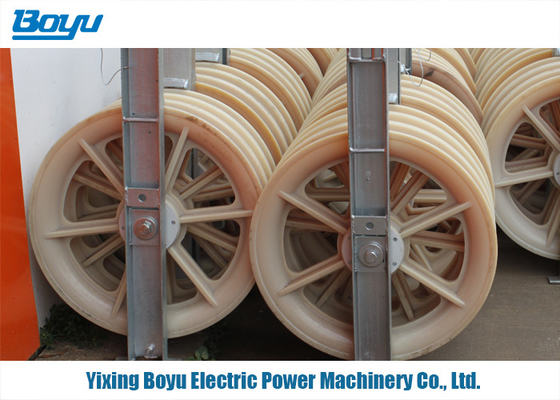

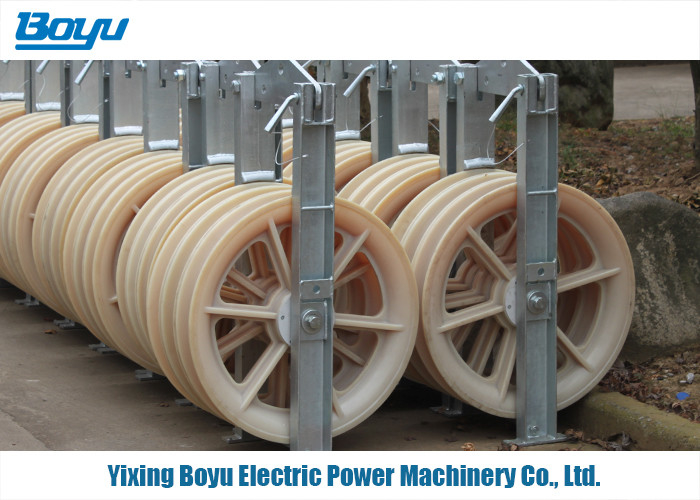

Large Image : 3 Sheave Nylon Pulley Block For 3 Bundle Conductors

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	SHSN-1160X150

Payment & Shipping Terms:

Minimum Order Quantity:	100pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	100000pieces/month.

Contact Now

Detailed Product Description

Product:

Nylon Pulley-Block For 3 Bundle Conductors

Wheel Size Outside Dia. X Width:

1160X150mm

Rated Load:

120kN

Conductor Size:

≤1250MM2

Highlight:

3 sheave nylon pulley block

3 bundle conductors nylon pulley block

Nylon Pulley-Block for 3 Bundle Conductors 3 Sheave Pulley Blocks

TYSHS Three Conductor Pulleys
Model	Wheel size Outside Dia. x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHSN-508X75	508X75	≤400	16	42	Nylon
SHSN-508X100	508X100	≤400	25	47	Nylon
SHSN-660X100	660X100	≤500	40	85	Nylon
SHSN-822X110	822X110	≤630	60	100	Nylon
SHSN-916X110	916X110	≤800	80	140	Nylon
SHSN-1040X125	1040X125	≤1000	110	210	Nylon
SHSN-1160X150	1160X150	≤1250	120	245	Nylon
SHSNN-255X110	255X110	≤630	50	120	Nylon
SHSNN-325X150	325X150	≤1250	120	165	Nylon
The pulleys are suitable for string two or three bundled conductor lines.

3 Sheave Nylon Pulley Block For 3 Bundle Conductors 0

Tag:

Contact Person: Mr. Green Lu

Tel: +86 18036062799

Other Products

Transmission Line Stringing Accessories Conductor Pulley and Blocks 80kN Load

SHW-508X75 Bundled Conductor Pulley Aluminum 5 Sheave Blocks

Product: 5 Sheave Pulley Blocks

Wheel size Diameter x Width: 508X75mm

Conductor size: <400mm2

Rated load: 40kN

Aluminum Five Conductor Bundled Conductor Pulleys Blocks

Product: Aluminum Five Conductor Pulley Blocks

Wheel material: Middle steel Four Nylon

Wheel size Diameter x Width: 660X100mm

Conductor size: <500mm2

660x100mm Wheel Size Bundled Conductor Pulley 5 Sheave Blocks

Wheel size Diameter x Width: 660X100mm

Conductor size: <500mm2

Wheel material: Middle steel Four Nylon

Rated load: 60kN

Aluminum Bundled Conductor Pulley Block For 5 Bundle Conductors

Wheel material: Middle steel Four Nylon

Conductor size: <400mm2

Weight: 85.5kg

Product: Aluminum Pulley-Block for 5 Bundle Conductors
