Product Details:
Payment & Shipping Terms:
|
| Wheel Size Diameter X Width: | 660X100mm | Conductor Size: | <500mm2 |
|---|---|---|---|
| Wheel Material: | Middle Steel Four Nylon | Rated Load: | 60kN |
| Product: | 5 Sheave Pulley Blocks Bundled Conductor Pulley | Weight: | 106kg |
| Highlight: | 660x100mm wheel bundled conductor pulley,5 sheave bundled conductor pulley,660x100mm wheel bundled conductor sheave |
||

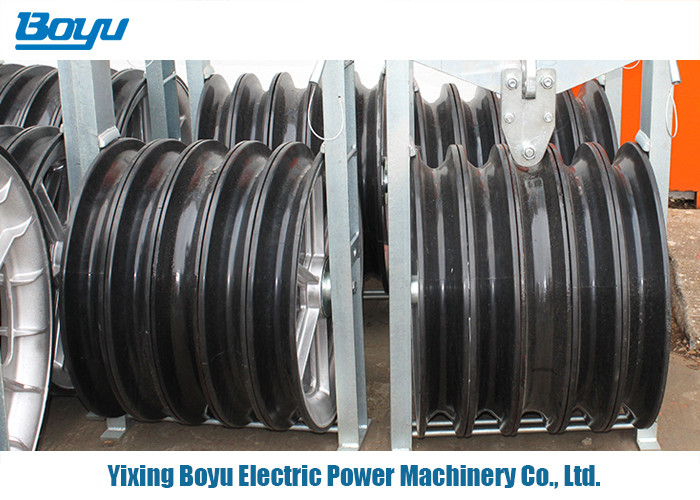

Bundled Conductor Pulley 660X100mm Wheel Size 5 Sheave Pulley Blocks
| TYSHW Five Conductor Pulleys | |||||
| The pulleys are suitable for string four bundled conductor lines. | |||||
| Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
| SHW-508X75 | 508X75 | ≤400 | 40 | 85.5 |
Middle steel Four Nylon |
| SHW-660X100 | 660X100 | ≤500 | 60 | 106 | |
| SHWN-508X75 | 508X75 | ≤400 | 40 | 60 | Nylon |
| SHWN-660X100 | 660X100 | ≤500 | 60 | 85 | Nylon |
| SHWN-822X110 | 822X110 | ≤630 | 60 | 100 | Nylon |
| SHWN-916X110 | 916X110 | ≤800 | 80 | 140 | Nylon |
| SHWN-1040X125 | 1040X125 | ≤1000 | 110 | 210 | Nylon |
| SHWNN-255X110 | 255x110 | ≤630 | 100 | 160 | Nylon |
