| Product: | Aluminum Five Conductor Pulley Blocks | Wheel Material: | Middle Steel Four Nylon |
|---|---|---|---|
| Wheel Size Diameter X Width: | 660X100mm | Conductor Size: | <500mm2 |
| Rated Load: | 60kN | Weight: | 106kg |
| Highlight: | bundled conductor pulleys aluminum,five conductor bundled conductor pulleys,bundled conductor sheave aluminum |
||

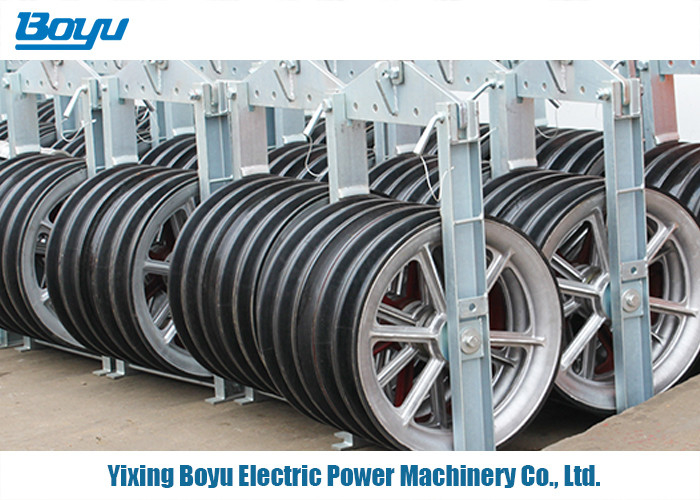

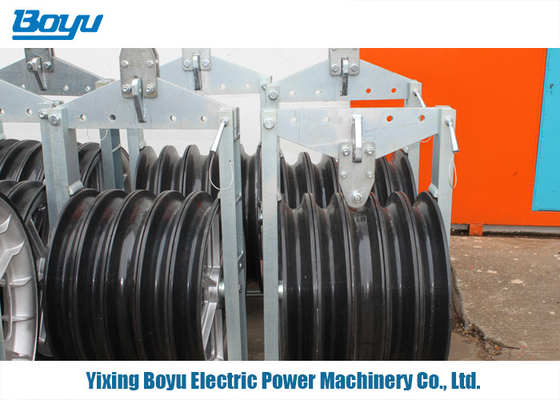

Bundled Conductor Pulley Aluminum Five Conductor Pulley Blocks
TYSHW Five Conductor Pulleys
The pulleys are suitable for string four bundled conductor lines.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHW-508X75 | 508X75 | ≤400 | 40 | 85.5 |
Middle steel Four Nylon |
| SHW-660X100 | 660X100 | ≤500 | 60 | 106 | |
| SHWN-508X75 | 508X75 | ≤400 | 40 | 60 | Nylon |
| SHWN-660X100 | 660X100 | ≤500 | 60 | 85 | Nylon |
| SHWN-822X110 | 822X110 | ≤630 | 60 | 100 | Nylon |
| SHWN-916X110 | 916X110 | ≤800 | 80 | 140 | Nylon |
| SHWN-1040X125 | 1040X125 | ≤1000 | 110 | 210 | Nylon |
| SHWNN-255X110 | 255x110 | ≤630 | 100 | 160 | Nylon |
