| Highlight: | line stringing pulley,conductor pulley |
||
|---|---|---|---|

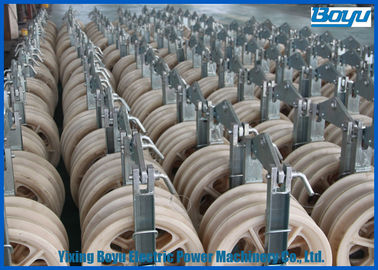

3x830x110 Three Nylon Wheel D830mm Bundled Conductor Pulley Section Area Under 630mm2 Line Stringing
Quick details:
1. Three Wheels
2. Nylon Wheels
3. Galvanized Steel Frame
4. Transmission Line Stringing Accessories
5. Conductor/Cable/OPGW Bundled Conductor Pulley
6. Diameter: 830mm
7. Width: 110mm
8. With Rubber Covered or Without
Specification:
Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber.
|
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
|
SHD-120X30 |
120x30 |
25~70 |
5 |
2.1 |
Aluminum |
|
SHD-160X40 |
160X40 |
95~120 |
10 |
3.1 |
|
|
SHD-200X40 |
200X40 |
150~240 |
15 |
3.7 |
|
|
SHD-200X60 |
200X60 |
150~240 |
15 |
4.1 |
|
|
SHD-250X40 |
250X40 |
150~240 |
20 |
5.1 |
|
|
SHD-250X60 |
250X60 |
300~400 |
20 |
5.4 |
|
|
SHD-270X60 |
270X60 |
300~400 |
20 |
6.7 |
|
|
SHD-320X60 |
320X60 |
300~400 |
20 |
10.4 |
|
|
SHD-400X80 |
400X80 |
400~500 |
20 |
11.9 |
|
|
SHDN-120X30 |
120x30 |
25~70 |
5 |
1.5 |
Nylon |
|
SHDN-160X40 |
160X40 |
95~120 |
10 |
2.3 |
|
|
SHDN-200X40 |
200X40 |
150~240 |
15 |
2.5 |
|
|
SHDN-200X60 |
200X60 |
150~240 |
15 |
3.0 |
|
|
SHDN-250X40 |
250X40 |
150~240 |
20 |
3.6 |
|
|
SHDN-250X60 |
250X60 |
300~400 |
20 |
3.8 |
|
|
SHDN-270X60 |
270X60 |
300~400 |
20 |
4.3 |
|
|
SHDN-320X60 |
320X60 |
300~400 |
20 |
7.5 |
|
|
SHDN-400X80 |
400X80 |
400~500 |
20 |
8 |
|
|
SHD-508X75 |
508X75 |
≤400 |
20 |
22.3 |
Aluminum |
|
SHD-660X100 |
660X100 |
≤500 |
20 |
30 |
|
|
SHDN-508X75 |
508X75 |
≤400 |
20 |
18 |
Nylon |
|
SHDN-660X100 |
660X100 |
≤500 |
20 |
20 |
|
|
SHDN-830X110 |
830X110 |
≤630 |
30 |
25 |
|
|
SHDN-916X110 |
916X110 |
≤800 |
50 |
45 |
|
|
SHDN-1040X125 |
1040X125 |
≤1000 |
55 |
105 |
Three Wheels-The pulleys are suitable for string two or three bundled conductor lines.
|
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
|
SHS-508X75 |
3X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
|
SHS-660X100 |
3X660X100 |
≤500 |
20 |
106 |
|
|
SHSN-508X75 |
3X508X75 |
≤400 |
40 |
60 |
Nylon |
|
SHSN-660X100 |
3X660X100 |
≤500 |
40 |
85 |
|
|
SHSN-830X110 |
3X830X110 |
≤630 |
60 |
100 |
|
|
SHSN-916X110 |
3X916X110 |
≤800 |
80 |
140 |
|
|
SHSN-1040X125 |
3X1040X125 |
≤1000 |
110 |
210 |
Five Wheels-The pulleys are suitable for string four bundled conductor lines.
|
Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
|
SHW-508X75 |
5X508X75 |
≤400 |
40 |
85.5 |
Middle steel Two Nylon |
|
SHW-660X100 |
5X660X100 |
≤500 |
40 |
106 |
|
|
SHWN-508X75 |
5X508X75 |
≤400 |
40 |
60 |
Nylon |
|
SHWN-660X100 |
5X660X100 |
≤500 |
40 |
85 |
|
|
SHWN-830X110 |
5X830X110 |
≤630 |
60 |
100 |
|
|
SHWN-916X110 |
5X916X110 |
≤800 |
80 |
140 |
|
|
SHWN-1040X125 |
5X1040X125 |
≤1000 |
110 |
210 |
Maufacturer Introduction
Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Established in 1997, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
1. Main configurations of our machine are from Germany and USA
Engine: American Cummins
Main pump: German Rexroth
Main motor& speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German
2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
4. We can supply the specific components to the buyers with cost price after warranty period.
Work Site
