Product Details:
Payment & Shipping Terms:
|
| Weight: | 20kg | Wheel Material: | Nylon |
|---|---|---|---|
| Conductor Size: | ≤500mm2 | Rated Load: | 20kN |
| Wheel Size Diameter X Width: | 660X100mm | Product: | Running Out Blocks |
| High Light: | single bundled conductor pulley,wire protection bundled conductor pulley,single bundled conductor sheave |
||

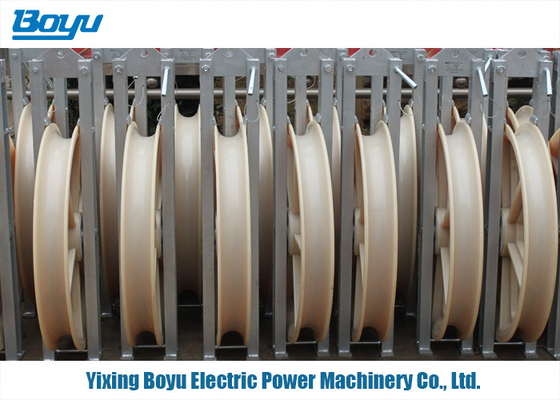

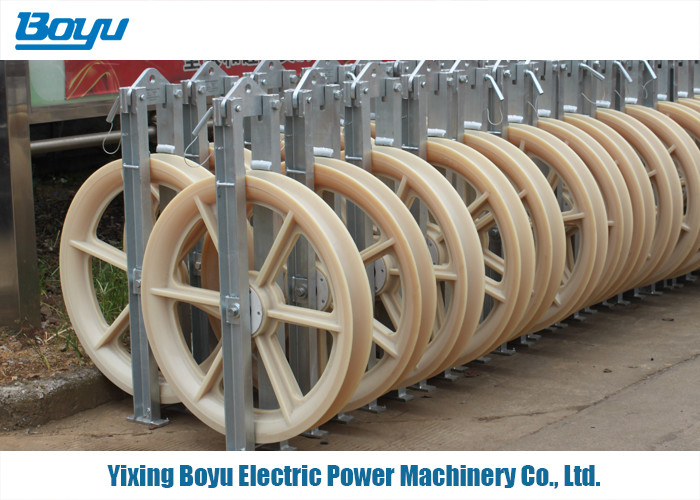

Bundled Conductor Pulley Nylon Single Pulleys Running Out Blocks
TYSHD Single Conductor Pulleys
Wheel material aluminum or Nylon, and it could be covered by rubber.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | Aluminum |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | Nylon |
| SHDN-822X110 | 822X110 | ≤630 | 30 | 25 | Nylon |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | Nylon |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 | Nylon |
| SHDN-1160X150 | 1160X150 | ≤1250 | 45 | 155 | Nylon |
| SHDNN-255X110 | 255X110 | ≤630 | 100 | 77 | Nylon |
| SHDNN-325X150 | 325X150 | ≤1520 | 120 | 85 | Nylon |
