Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN

Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN
Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN

Large Image :  Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TYSHSN-1160x150
Payment & Shipping Terms:
Minimum Order Quantity: 10set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 500sets/month.
Detailed Product Description
Type: Nylon Three Wheel Conductor Pulleys Wheel Size Diameter X Width: 1160x130/150mm
Wheel Material: Nylon Conductor Size: <1250mm2
Rated Load: 120kN Weight: 245kg
High Light:

conductor stringing pulley

,

conductor pulley

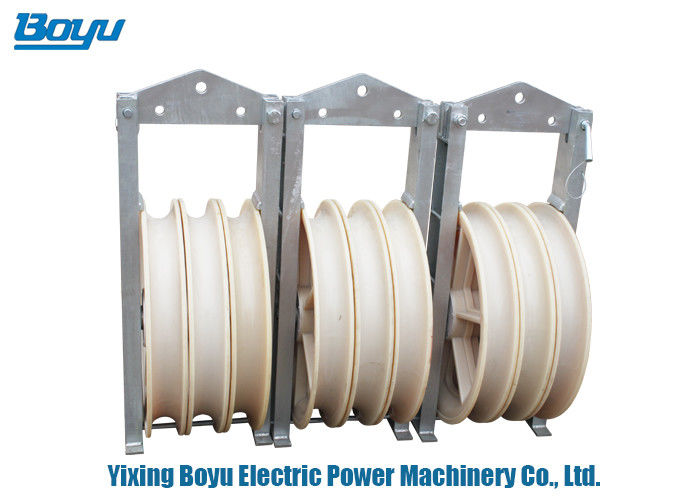

Bundled Conductor Pulley Stringing Equipment Tools 120kN Nylon Three Conductor Pulleys

  1. Model: SHSN-1160x150
  2. Wheel Size Diameter x Width: 1160x130/150mm
  3. Conductor Size: <1250mm2
  4. Rated Load: 120kN
  5. Weight: 245kg
  6. Wheel Material: Nylon

Three Wheel Conductor Pulleys

Model Wheel Size Diameter x Width Conductor Size Rated Load Weight Wheel Material
SHS-508X75 508X75mm <400mm2 40kN 85.5kg Middle Steel Two Nylon
SHS-660X100 660X100mm <500mm2 40kN 106kg
SHSN-508X75 508X75mm <400mm2 16kN 42kg Nylon
SHSN-508X100 508X100mm <400mm2 25kN 47kg
SHSN-660X100 660X100mm <500mm2 40kN 85kg
SHSN-822X110 822X100mm <630mm2 60kN 100kg
SHSN-916X110 916X110mm <800mm2 80kN 140kg
SHSN-1040X125 1040X125mm <1000mm2 110kN 210kg
SHSN-1160X150 1160X130/150mm <1250mm2 120kN 245kg
SHSNN-255X110 255X110mm <630mm2 50kN 120kg
SHSNN-325X150 325X150mm <1520mm2 120kN 165kg



Transmission System Bundled Conductor Pulley Stringing Equipment Tools 120kN 0
