Product Details:
Payment & Shipping Terms:
|
| Type: | Three Conductor Pulleys | Wheel Size Diameter X Width: | 660x100mm |
|---|---|---|---|
| Wheel Material: | Nylon | Conductor Size: | <500mm2 |
| Rated Load: | 40kN | Weight: | 85kg |
| Highlight: | line stringing pulley,conductor stringing pulley |
||
Bundled Conductor Pulley Nylon Rated Load 40kN Three Wheel Conductor Pulleys
Performance
| Model | Wheel Size Diameter x Width | Conductor Size | Rated Load | Weight | Wheel Material |
| mm | mm2 | kN | kg | ||
| SHS-508X75 | 508X75 | <400 | 40 | 85.5 | Middle Steel Two Nylon |
| SHS-660X100 | 660X100 | <500 | 40 | 106 | |
| SHSN-508X75 | 508X75 | <400 | 16 | 42 | Nylon |
| SHSN-508X100 | 508X100 | <400 | 25 | 47 | |
| SHSN-660X100 | 660X100 | <500 | 40 | 85 | |
| SHSN-822X110 | 822X100 | <630 | 60 | 100 | |
| SHSN-916X110 | 916X110 | <800 | 80 | 140 | |
| SHSN-1040X125 | 1040X125 | <1000 | 110 | 210 | |
| SHSN-1160X150 | 1160X130/150 | <1250 | 120 | 245 | |
| SHSNN-255X110 | 255X110 | <630 | 50 | 120 | |
| SHSNN-325X150 | 325X150 | <1520 | 120 | 165 |

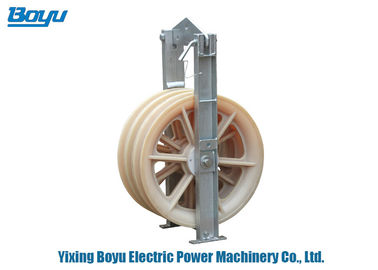

Three Conductor Pulleys
The Pulleys are suitable for string two or three bundled conductor lines.
