Overhead Line Stringing Equipment Max Intermittent Tension 2x70kN Hydraulic Tension Machine

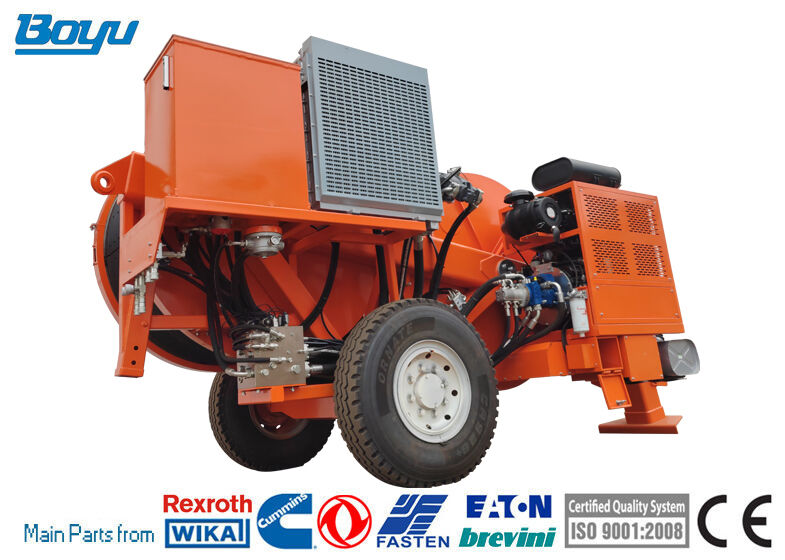

Large Image : Overhead Line Stringing Equipment Max Intermittent Tension 2x70kN Hydraulic Tension Machine

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-12

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Type:	TY2x70 Hydraulic Tension Machine	Max Intermittent Tension:	2x70kN
Groove Number:	2x6	Main Hydraulic Valves:	USA Sun / Italy ATOS
Main Motor:	German Rexroth/French Leduc	Diesel:	77kw(103hp)
Highlight:	hydraulic tension machine 70kN , overhead line stringing equipment , intermittent tension machine 2x70kN

Overhead Line Stringing Equipment Max Intermittent Tension 2x70kN Hydraulic Tension Machine

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics	Bull-wheel diameter: 1700mm
	Max conductor diameter: 45mm
	Groove number: 2x6
	Total weight: 11500kg
	Overall dimension (lengthwidthheight): 550024602900mm

Performance	Max intermittent tension: 2x70kN
	Max continuous tension: 2x60kN
	Speed at max tension: 2.5km/h
	Max speed: 5km/h
	Pull at max speed: 2x30kN/1x60kN
	Max reverse pulling force: 260kN/1120kN
	Max reverse pulling speed: 3km/h

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Configuration	2 negative self-acting hydraulic brakes
	Control instruments for hydraulic system and diesel engine
	2 digital meter and speed counters
	Grounding connection point
	2 hydraulic dynamometers
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake
	Hydraulic oil cooling system
	Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Engine	Diesel: 77kw(103hp)
	Cooling system: water
	Electrical system: 24V

Main configuration	Engine: Cummins
	Hydraulic pump: German Rexroth/Dnish Danfoss
	Main hydraulic valves: USA Sun / Italy ATOS
	Speed reducer: German Rexroth / Italy Bonfiglioli
	Main motor: German Rexroth/French Leduc

Additional Devices	Lighting system for the trailer
	Digital speed and meter counter
	Trailer for towing at max speed of 15 km/h
	Swivel guide rope roller
	2 hydraulic rope/conductor clamp (extra charge)
	Air brake system for the trailer (extra charge)

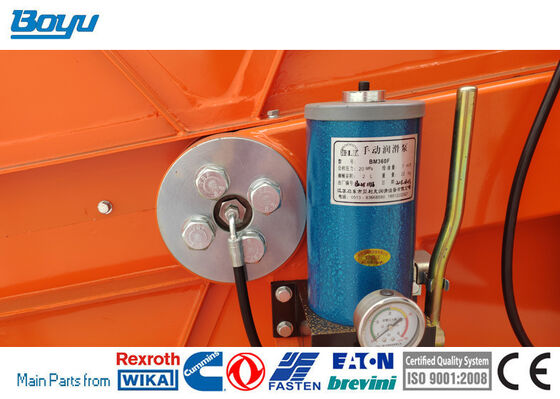

Overhead Line Stringing Equipment Max Intermittent Tension 2x70kN Hydraulic Tension Machine 0
