TY2X70 Overhead Line Stringing Equipment Hydraulic Power Tensioner

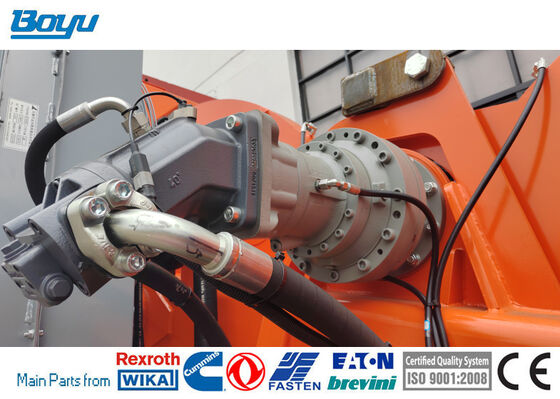

Large Image : TY2X70 Overhead Line Stringing Equipment Hydraulic Power Tensioner

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-10

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Type:	Stringing Equipment Hydraulic Power Tensioner	Max Intermittent Tension:	2x70kN
Max Continuous Tension:	2x60kN	Pull At Max Speed:	2x30kN/1x60kN
Bull-wheel Diameter:	1700mm	Groove Number:	2x6
Highlight:	hydraulic power tensioner for overhead lines , overhead line stringing equipment with warranty , TY2X70 line tensioner hydraulic system

TY2X70 Overhead Line Stringing Equipment Hydraulic Power Tensioner

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
	Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics	Bull-wheel diameter	1700mm
	Max conductor diameter	45mm
	Total weight	11500kg
	Groove number	2x6
	Overall dimension (lengthwidthheight)	550024602900mm

Performance	Max intermittent tension	2x70kN
	Max continuous tension	2x60kN
	Speed at max tension	2.5km/h
	Max reverse pulling speed	3km/h
	Pull at max speed	2x30kN/1x60kN
	Max reverse pulling force	260kN/1120kN
	Max speed	5km/h

Main configuration	Engine	Cummins
	Hydraulic pump	German Rexroth/Dnish Danfoss
	Main motor	German Rexroth/French Leduc
	Main hydraulic valves	USA Sun / Italy ATOS
	Speed reducer	German Rexroth / Italy Bonfiglioli

Engine	Diesel	77kw(103hp)
	Cooling system	water
	Electrical system	24V

Configuration	2 negative self-acting hydraulic brakes
	Control instruments for hydraulic system and diesel engine
	Hydraulic oil cooling system
	Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
	2 digital meter and speed counters
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake
	2 hydraulic dynamometers
	Grounding connection point

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Additional Devices	Lighting system for the trailer
	Swivel guide rope roller
	Air brake system for the trailer (extra charge)
	Trailer for towing at max speed of 15 km/h
	Digital speed and meter counter
	2 hydraulic rope/conductor clamp (extra charge)

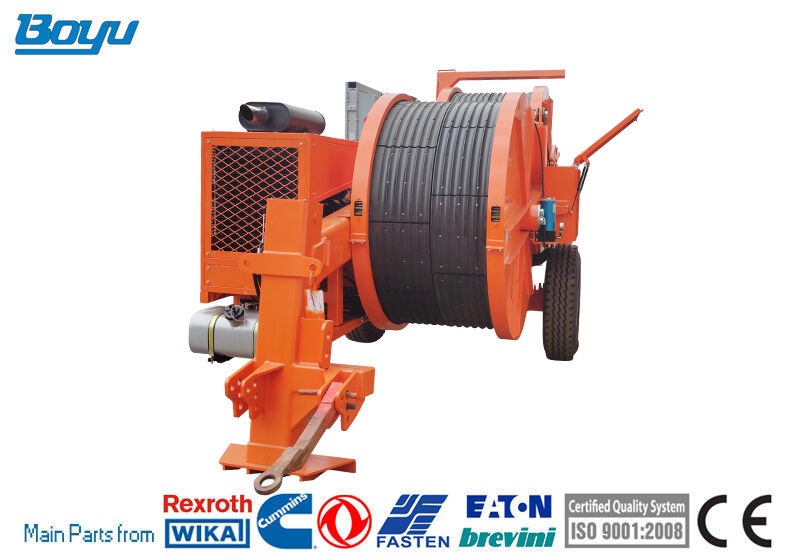

TY2X70 Overhead Line Stringing Equipment Hydraulic Power Tensioner 0
