Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Tensioner Machine

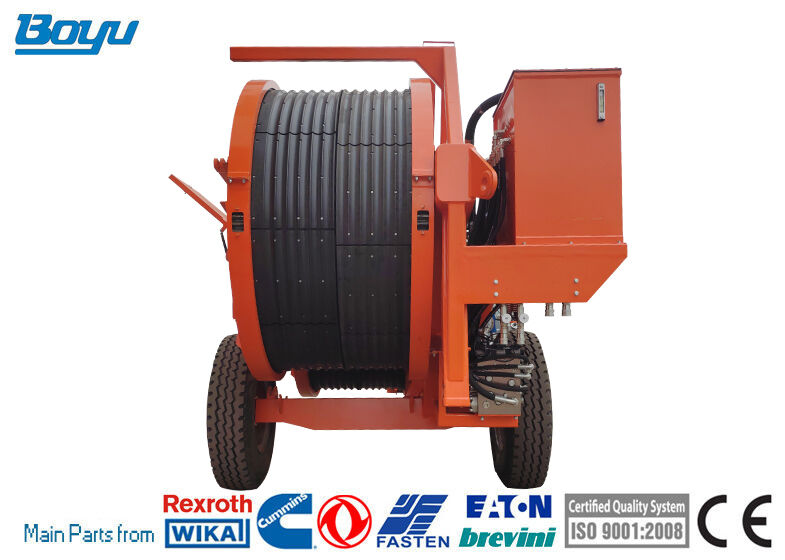

Large Image : Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Tensioner Machine

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-8

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Type:	Hydraulic Cable Tensioner Machine	Max Intermittent Tension:	2x70kN
Pull At Max Speed:	2x30kN/1x60kN	Speed At Max Tension:	2.5km/h
Diesel:	77kw(103hp)	Cooling System:	Water
Highlight:	TY2X70 hydraulic cable tensioner , overhead line stringing machine , hydraulic tensioner for cable installation

Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Tensioner Machine

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Max intermittent tension	2x70kN
Max continuous tension	2x60kN
Pull at max speed	2x30kN/1x60kN
Speed at max tension	2.5km/h
Max reverse pulling speed	3km/h
Max speed	5km/h
Max reverse pulling force	260kN/1120kN
Groove number	2x6
Bull-wheel diameter	1700mm
Overall dimension (lengthwidthheight)	550024602900mm
Total weight	11500kg
Max conductor diameter	45mm
Cooling system	water
Diesel	77kw(103hp)
Electrical system	24V
Hydraulic pump	German Rexroth/Dnish Danfoss
Engine	Cummins
Main hydraulic valves	USA Sun / Italy ATOS
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth / Italy Bonfiglioli
Configuration
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Rigid axle for towing at max speed of 15km/h with mechanical parking brake
2 negative self-acting hydraulic brakes
Control instruments for hydraulic system and diesel engine
2 digital meter and speed counters
Hydraulic oil cooling system
2 hydraulic dynamometers
Grounding connection point
Additional Devices
Lighting system for the trailer
Digital speed and meter counter
Air brake system for the trailer (extra charge)
Trailer for towing at max speed of 15 km/h
Swivel guide rope roller
2 hydraulic rope/conductor clamp (extra charge)
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.

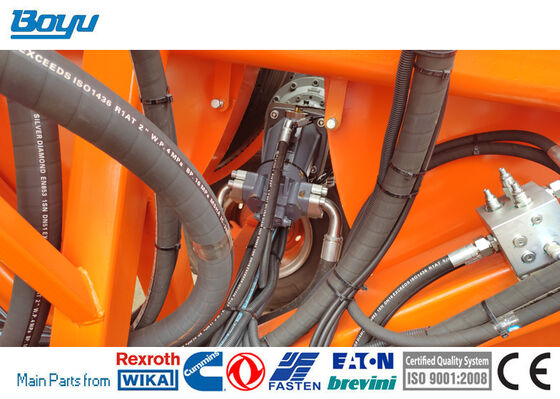

Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Tensioner Machine 0
