Overhead Line Stringing Equipment Hydraulic 2x70kN Conductor Tensioner

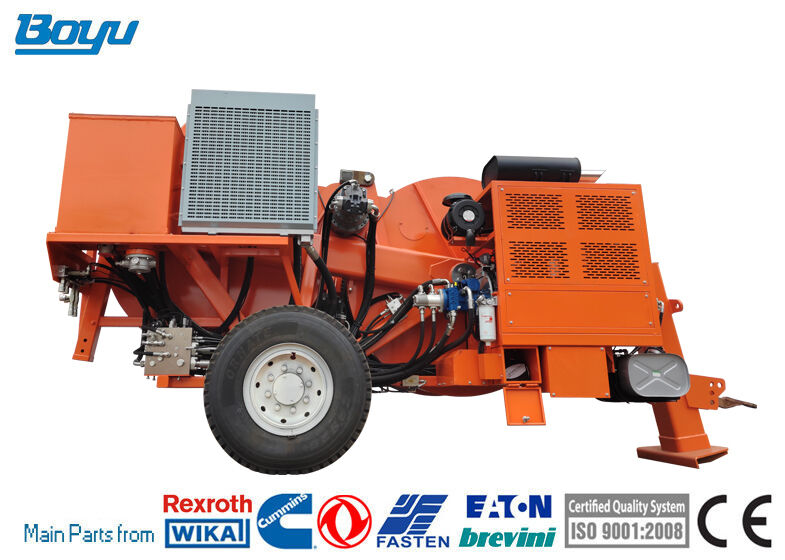

Large Image : Overhead Line Stringing Equipment Hydraulic 2x70kN Conductor Tensioner

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-10

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Type:	Hydraulic 2x70kN Conductor Tensioner	Max Intermittent Tension:	2x70kN
Max Continuous Tension:	2x60kN	Diesel:	77kw(103hp)
Main Hydraulic Valves:	USA Sun / Italy ATOS	Groove Number:	2x6
Highlight:	hydraulic conductor tensioner 2x70kN , overhead line stringing equipment hydraulic , 70kN conductor tensioner for power lines

Overhead Line Stringing Equipment Hydraulic 2x70kN Conductor Tensioner

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
	Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics	Bull-wheel diameter	1700mm
	Max conductor diameter	45mm
	Total weight	11500kg
	Groove number	2x6
	Overall dimension (lengthwidthheight)	550024602900mm

Performance	Max intermittent tension	2x70kN
	Max continuous tension	2x60kN
	Speed at max tension	2.5km/h
	Max reverse pulling speed	3km/h
	Pull at max speed	2x30kN/1x60kN
	Max reverse pulling force	260kN/1120kN
	Max speed	5km/h

Main configuration	Engine	Cummins
	Hydraulic pump	German Rexroth/Dnish Danfoss
	Main motor	German Rexroth/French Leduc
	Main hydraulic valves	USA Sun / Italy ATOS
	Speed reducer	German Rexroth / Italy Bonfiglioli

Engine	Diesel	77kw(103hp)
	Cooling system	water
	Electrical system	24V

Configuration	2 negative self-acting hydraulic brakes
	Rigid axle for towing at max speed of 15km/h with mechanical parking brake
	Hydraulic oil cooling system
	Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
	Grounding connection point
	2 digital meter and speed counters
	2 hydraulic dynamometers

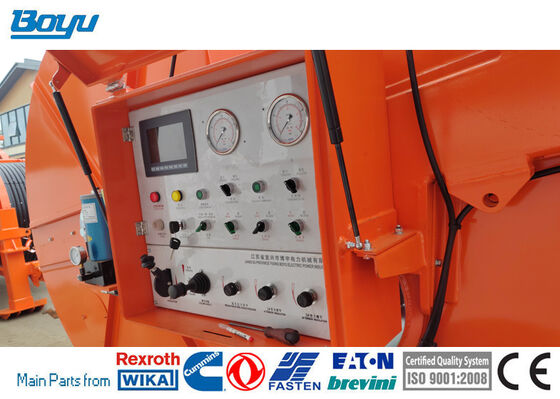

	Control instruments for hydraulic system and diesel engine

Hydraulic Transmission	The machine can realize step less speed.
	The machine is provided with tension presetting system.

Additional Devices	Swivel guide rope roller
	Digital speed and meter counter
	Air brake system for the trailer (extra charge)
	Trailer for towing at max speed of 15 km/h
	Lighting system for the trailer
	2 hydraulic rope/conductor clamp (extra charge)
