Overhead Line Stringing Equipment TY2X70 Conductor Hydraulic Wheel Tensioner

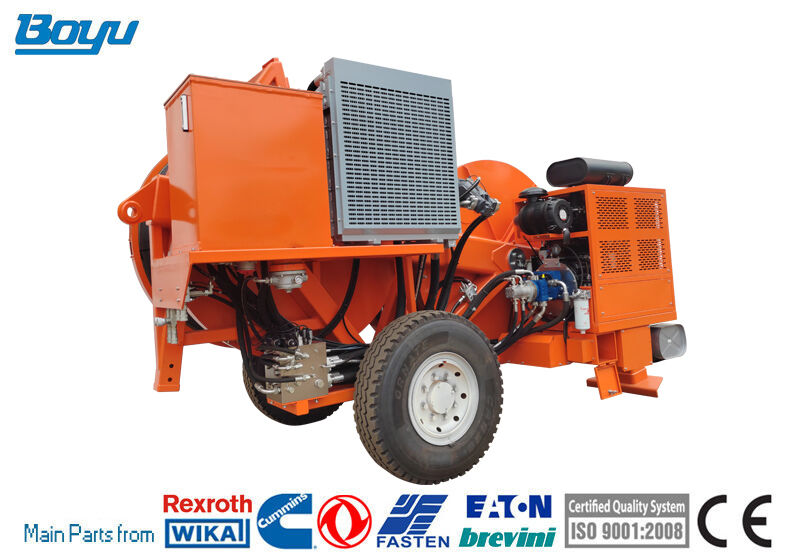

Large Image : Overhead Line Stringing Equipment TY2X70 Conductor Hydraulic Wheel Tensioner

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-6

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Type:	TY2X70 Conductor Hydraulic Wheel Tensioner	Max Intermittent Tension:	2x70kN
Pull At Max Speed:	2x30kN/1x60kN	Groove Number:	2x6
Max Conductor Diameter:	45mm	Bull-wheel Diameter:	1700mm
Highlight:	TY2X70 hydraulic wheel tensioner , overhead line conductor tensioner , hydraulic line stringing equipment

Overhead Line Stringing Equipment TY2X70 Conductor Hydraulic Wheel Tensioner

TY2x70 Hydraulic Tensioner
The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
Max intermittent tension	2x70kN
Max continuous tension	2x60kN
Speed at max tension	2.5km/h
Max speed	5km/h
Pull at max speed	2x30kN/1x60kN
Max reverse pulling force	260kN/1120kN
Max reverse pulling speed	3km/h
Characteristics
Bull-wheel diameter	1700mm
Max conductor diameter	45mm
Groove number	2x6
Total weight	11500kg
Overall dimension (lengthwidthheight)	550024602900mm
Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth / Italy Bonfiglioli
Main hydraulic valves	USA Sun / Italy ATOS
Engine
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V
Hydraulic Transmission
The machine can realize step less speed.
The machine is provided with tension presetting system.
Configuration
2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter and speed counters
Control instruments for hydraulic system and diesel engine
Rigid axle for towing at max speed of 15km/h with mechanical parking brake
Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
Grounding connection point
Additional Devices
Lighting system for the trailer
2 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 15 km/h
Digital speed and meter counter
Air brake system for the trailer (extra charge)

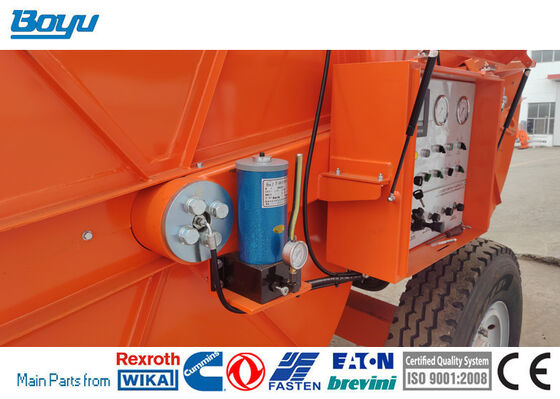

Overhead Line Stringing Equipment TY2X70 Conductor Hydraulic Wheel Tensioner 0
