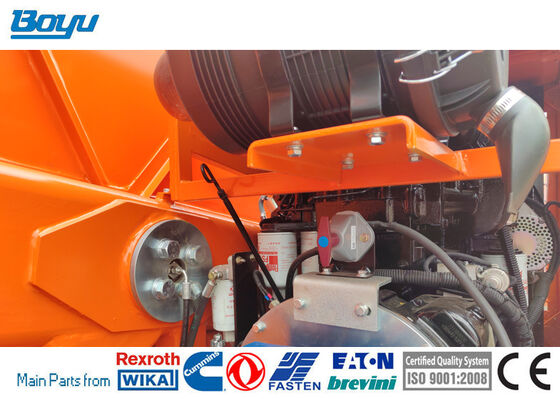

Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner

Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner
Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner

Large Image :  Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x70-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 10Sets/Month
Contact Now
Detailed Product Description
Max Intermittent Tension: 2x70kN Bull-wheel Diameter: 1700mm
Pull At Max Speed: 2x30kN/1x60kN Max Reverse Pulling Force: 2*60kN/1*120kN
Overall Dimension (length*width*height): 5500*2460*2900mm Type: TY2X70 Hydraulic Cable Wire Tensioner
Highlight:

TY2X70 hydraulic cable tensioner

,

overhead line stringing equipment

,

wire tensioner with hydraulic system

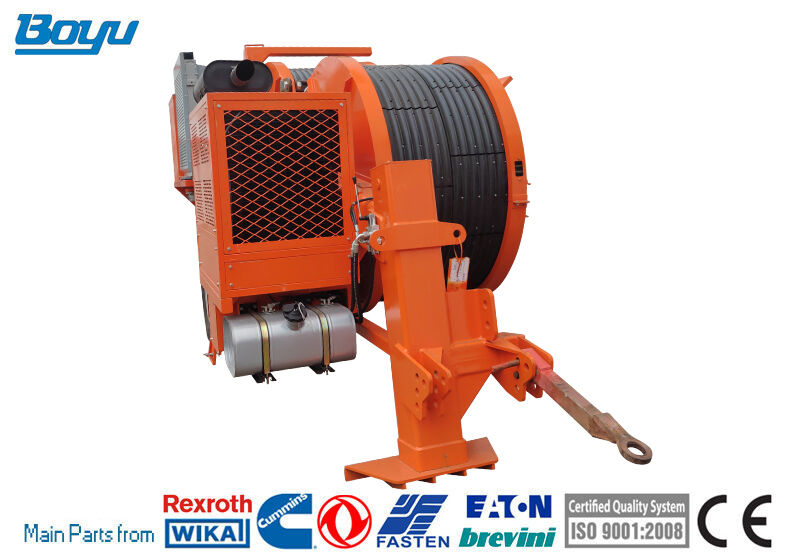

Overhead Line Stringing Equipment TY2X70 Hydraulic Cable Wire Tensioner





TY2x70 Hydraulic Tensioner
  • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
  1. Max intermittent tension: 2x70kN
  2. Max continuous tension: 2x60kN
  3. Max speed: 5km/h
  4. Speed at max tension: 2.5km/h
  5. Max reverse pulling force: 2*60kN/1*120kN
  6. Pull at max speed: 2x30kN/1x60kN
  7. Max reverse pulling speed: 3km/h
Characteristics
  1. Bull-wheel diameter: 1700mm
  2. Groove number: 2x6
  3. Max conductor diameter: 45mm
  4. Overall dimension (length*width*height): 4700*2300*2700mm
  5. Total weight: 9000kg
Engine
  1. Diesel: 77kw(103hp)
  2. Electrical system: 24V
  3. Cooling system: water
Main configuration
  1. Engine: Cummins
  2. Main hydraulic valves: USA Sun / Italy ATOS
  3. Main motor: German Rexroth/French Leduc
  4. Hydraulic pump: German Rexroth/Dnish Danfoss
  5. Speed reducer: German Rexroth / Italy Bonfiglioli
Configuration
  1. ​Rigid axle for towing at max speed of 15km/h with mechanical parking brake
  2. Hydraulic oil cooling system
  3. 2 digital meter and speed counters
  4. 2 hydraulic dynamometers
  5. Control instruments for hydraulic system and diesel engine
  6. Grounding connection point
  7. Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
  8. 2 negative self-acting hydraulic brakes
Hydraulic Transmission
  1. The machine can realize step less speed.
  2. The machine is provided with tension presetting system.
Additional Devices
  1. Lighting system for the trailer
  2. Swivel guide rope roller
  3. 2 hydraulic rope/conductor clamp (extra charge)
  4. Air brake system for the trailer
  5. Trailer for towing at max speed of 15 km/h
  6. Digital speed and meter counter
