Overhead Line Stringing Equipment 2x70kN Hydraulic Tensioner Equipment

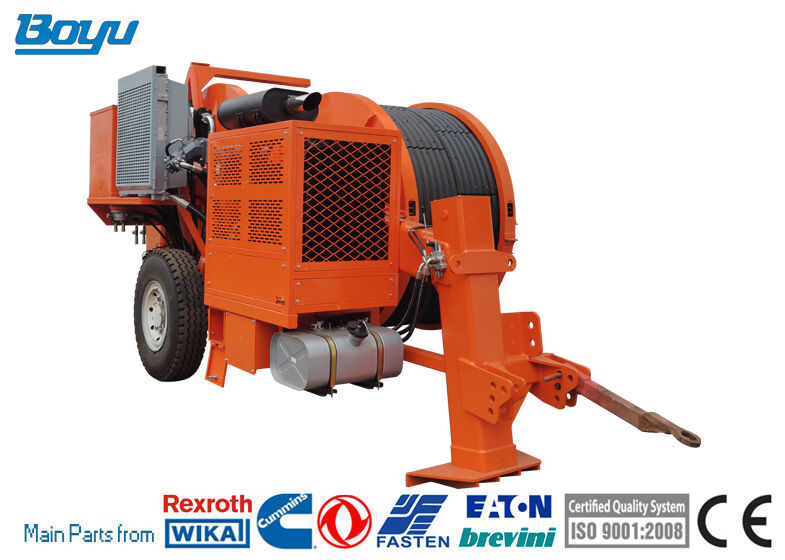

Large Image : Overhead Line Stringing Equipment 2x70kN Hydraulic Tensioner Equipment

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	TY2x70-3

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	10Sets/Month

Contact Now

Detailed Product Description

Bull-wheel Diameter:	1700mm	Max Intermittent Tension:	2x70kN
Max Continuous Tension:	2x60kN	Overall Dimension (lengthwidthheight):	550024602900mm
Pull At Max Speed:	2x30kN/1x60kN	Type:	2x70kN Hydraulic Tensioner Equipment
Highlight:	70kN hydraulic tensioner equipment , overhead line stringing tensioner , hydraulic tensioner for power lines

Overhead Line Stringing Equipment 2x70kN Hydraulic Tensioner Equipment

TY2x70 Hydraulic Tensioner	The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Characteristics	Bull-wheel diameter: 1700mm Max conductor diameter: 45mm Groove number: 2x6 Total weight: 9000kg Overall dimension (lengthwidthheight): 470023002700mm
Performance	Max intermittent tension: 2x70kN Max continuous tension: 2x60kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x30kN/1x60kN Max reverse pulling force: 260kN/1120kN Max reverse pulling speed: 3km/h
Main configuration	Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor: German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS
Engine	Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V
Hydraulic Transmission	The machine can realize step less speed. The machine is provided with tension presetting system.
Configuration	2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Rigid axle for towing at max speed of 15km/h with mechanical parking brake Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor Grounding connection point
Additional Devices	Lighting system for the trailer 2 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Trailer for towing at max speed of 15 km/h Digital speed and meter counter Air brake system for the trailer

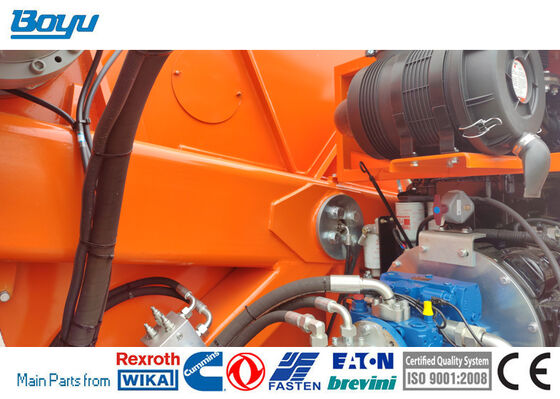

Overhead Line Stringing Equipment 2x70kN Hydraulic Tensioner Equipment 0
