Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope

Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope
Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope
video play

Large Image :  Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY1×6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 30 days
Payment Terms: TT/LC
Supply Ability: 100 sets/month
Detailed Product Description
After Sales Service: Available Max Continuous Pull: 6kn
Max Reverse Pulling Force: 5kn Speed At Max Pull: 2.5km/h
Max Speed: 5km/h OEM: Available
High Light:

transmission line stringing equipment

,

overhead line equipment

Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope



Quick details:



1.Tension Stringing Equipment

2.Groove number 5 Hydraulic Tensioner

3.Engine: HONDA GX390
4.Max intermittent pull: 5kN
5.Engine Honda
6.Max speed: 5km/h

7.Boyu Brand

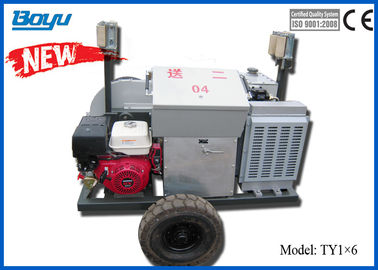

TY1x6 Hydraulic Tensioner

Compared with other larger tensioners, this machine is mainly applied in tension Synthetic fiber rope-polyethylene ropes

Characteristics

Bull-wheel diameter: 450 mm

Max dyneema rope diameter: 20mm

Groove number: 5

Total weight: 700kg

Overall dimension (length*width*height): 1400*1000*900mm

Performance

Max intermittent pull: 5kN

Max continuous pull: 6kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 3kN

Max reverse pulling force: 5kN

Main configuration

Engine: HONDA

Hydraulic pump: Tianjin Parker

Main motor: OMS-315

Hydraulic meter: German AFRISO

Engine

 HONDA GX390:9.8kw/3600rpm

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Grounding connection point





More pictures

Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope 0



Manufacturer Introduction


Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. Near Shanghai seaport and Nanjing airport.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters.
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.



Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Gasoline Engine HONDA for Dyneema Rope Nylon Rope 1





Service:



1.Deemed continuous improvement as our permanent pursuits.



2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.



3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.



4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.



5. 24-hour hot line: 86-0510-80329270. Once receive the customer’s enquiry , we will response within 24 hours.



6.Do the best  Groove Number 5  Hydraulic Tensioner Manufacture Tension Stringing Equipment in China.
