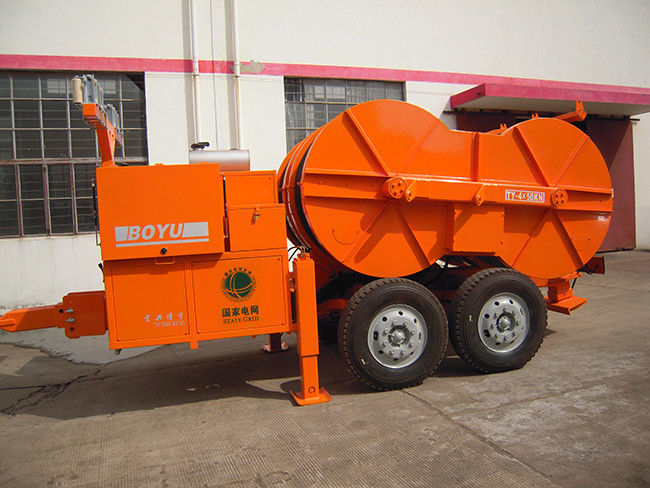

TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins

TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins
TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins

Large Image :  TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY4x50-20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Bull-wheel Diameter: 1500mm Max Tension: 4x50 (2x100) KN
Max Continue Tension: 4x40(2x80) KN Speed At Max Continue Tension: 2.5km/h
Engine: Cummins Diesel: 77kw(103hp)
Overall Dimension (LxWxH): 5900×2300×2700mm Total Weight: 13000kg
High Light:

transmission line stringing equipment

,

cable line tensioner

Tension Stringing Equipment TY4x50 Hydraulic Tensioner Engine Cummins



The machine allows for the tension stringing of one,two, three or four-bundle conductor of 630mm2; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Characteristics

Bull-wheel diameter 1500mm
Groove number 4X5
Max conductor diameter 40mm
Total weight 13000kg
Overall dimension (LxWxH) 5900×2300×2700mm



Performance

  • Max tension: 4x50 (2x100) KN
  • Max continue tension: 4x40(2x80) KN
  • Speed at max continue tension: 2.5km/h
  • Max feeding speed: 5km/h
  • Corresponding tension: 4x20 (2X40) KN
  • Max reverse pulling force: 4X40kN /2x80kN
  • Max reverse pulling speed:1.25km/h

Configuration

  • 4 negative self-acting hydraulic brakes
  • 4 hydraulic dynamometers
  • Hydraulic oil cooling system
  • 4 digital speed and meters counter
  • Control instruments for hydraulic system and diesel engine
  • Rigid axle for towing at max speed of 30km/h with parking brake
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
  • Hydraulic front and behind stabilizer
  • Grounding connection point

TY4x50 Quad Bundled Conductor Hydraulic Tensioner Engine Brand Cummins 0
