| Type: | Tension Stringing Equipment For Overhead Line | Diesel: | 77kw(103hp) |
|---|---|---|---|
| Cooling System: | Water | Electrical System: | 24V |
| Max Tension: | 4x50(2x100) KN | Overall Dimension (LxWxH): | 5900*2300*2700mm |
| High Light: | ISO9001 overhead line stringing equipment,77 kw Tension Stringing Equipment,4x50 KN Tension Stringing Equipment |
||

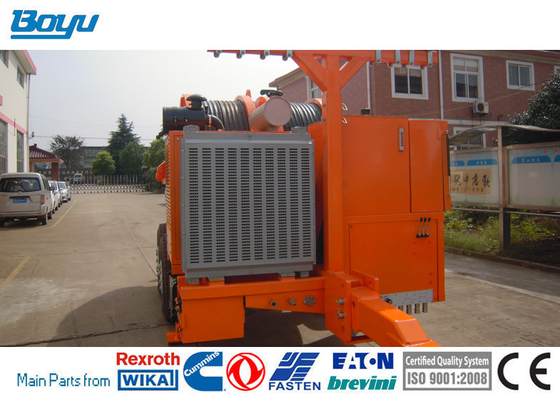

TY4x50 Tension Stringing Equipment For Overhead Line Construction
| Model |
Max intermittent tension |
Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | V | ||
| TY1X7.5 | 7.5 | 2.4 | ||||||||
| TY1X20 | 20 | 5 | ||||||||
| TY1X20II | 20 | 4 | ||||||||
| TY1X20III | 20 | 2.5 | 5 | 10 | 15 |
10kw (3600rpm) |
Air | |||
| TY1X30 | 30 | 2.5 | 5 | 15 | 20 | 12(16) | 12 | |||
| TY1X40 | 45 | 40 | 2.5 | 5 | 20 | 35 | 77(103) | Water | 24 | |
| TY1x40DQ | 45 | 40 | 2.5 | 5 | 20 | 40 | 3 | 56(73) | Air | 24 |
| TY1x40DV | 45 | 40 | 2.5 | 5 | 20 | 40 | 3 | 56(73) | Air | 24 |
| TY1X50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | 24 |
| TY140IV | 1x140 | 1x120 | 2.5 | 5 | 35 | 1x120 | 1.2 | 77(103) | Water | 24 |
| TY2X35 |
2x40/ 1x80 |
2x35/ 1x70 |
2.5 | 5 |
2x20/ 1x40 |
2x30/ 1x60 |
5 | 77(103) | Water | 24 |
| TY2X40 |
2x45/ 1x90 |
2x40/ 1x80 |
2.5 | 5 |
2x20/ 1x40 |
2x35/ 1x70 |
5 | 77(103) | Water | 24 |
| TY2X50 |
2x55/ 1x110 |
2x50/ 1x100 |
2.5 | 5 |
2x25/ 1x50 |
2x45/ 1x90 |
5 | 77(103) | Water | 24 |
| TY2X70 |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
2x60/ 1x120 |
5 | 77(103) | Water | 24 |
| TY2x70IV |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
2x60/ 1x120 |
5 | 77(103) | Water | 24 |
| TY2X90 |
2x100/ 1x200 |
2x90/ 1x180 |
2.5 | 5 |
2x40/ 1x80 |
2x80/ 1x160 |
2 |
130kw (2500r/min) |
Water | 24 |
| TY4x50 |
4x50/ 2x200 |
4x40/ 2x80 |
2.5 | 5 |
4x20/ 2x40 |
4x40/ 2x80 |
1.25 | 77(103) | Water | 24 |
|
Characteristics |
Bull-wheel diameter: 1500mm |
|
Groove number: 4X5 |
|
|
Max conductor diameter: 40mm |
|
|
Total weight: 13000kg |
|
|
Overall dimension (LxWxH): 5900*2300*2700mm |
|
|
Main configuration |
Engine: Cummins |
|
Hydraulic pump: German Rexroth/Dnish Danfoss |
|
|
Main motor:German Rexroth/French Leduc |
|
|
Speed reducer: German Rexroth |
|
|
Hydraulic meter: German WIKA |
|
|
Operating handle: German Rexroth |
