1200mm Bull-wheel Diesel 48kw(85hp) Hydraulic Pull Tension Machine 35kn 3.5t Diesel Cummins

1200mm Bull-wheel Hydraulic Pull Tension Machine 35kn 3.5t Diesel Cummins

Quick details:

1. Overhead Line Stringing Equipment
2. Hydraulic Pull Tension Machine
3. Max pull: 35kN 3.5Tons
4. Diesel: Cummins 48kw(64hp)
5. Main pump and motor: German Rexroth
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1200mm
8. Max Conductor diameter: 34mm
9. Max rope diameter: 13mm
10. Boyu Brand

Description
The machine is suitable to string one rope or one conductor. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.

Characteristics

1. Bull-wheel diameter: 1200mm
2. Max rope diameter : 13mm
3. Max conductor diameter: 34mm
4. Total weight: 2200kg

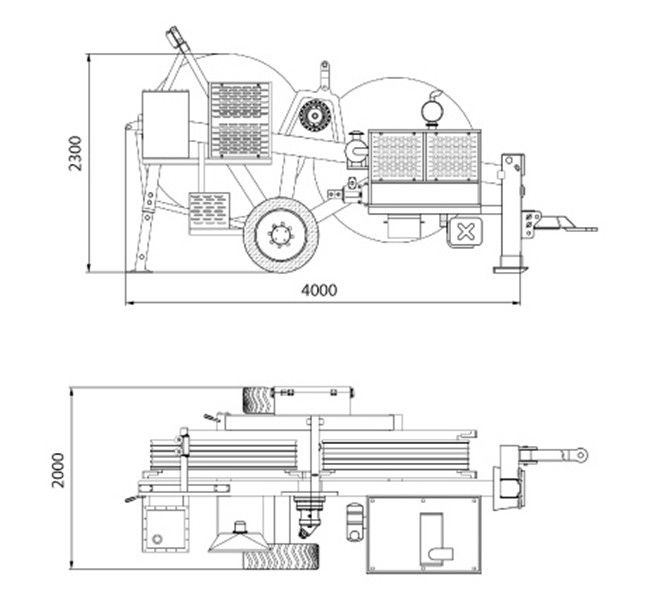

5. Overall dimension (length*width*height): 4000×2000×2300mm


Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with 2 pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices

1. Lighting system for the trailer
2. Hydraulic brake system for the trailer
3. 2 hydraulic conductor clamps for drum change operations
4. Electronic pull and speed recorder

Main configuration

1. Engine: Cummins
2. Main pump: German Rexroth
3. Main motor speed reducer: German Rexroth
4. Hydraulic meter: German

Performance
Max pull

1. Max pull: 35kN
2. Speed at max pull: 2.6km/h
3. Max speed: 4.5km/h
4. Pull at max speed: 20kN

Max tension

1. Max tension: 35kN
2. Max speed: 4.5km/h

Engine

1. Diesel 48kw(85hp)
2. Cooling system water
3. Electrical system 24V

Configuration

1. Negative self-acting hydraulic brakes
2. Hydraulic dynamometers with set-point and automatic control of maximum pull
3. Hydraulic oil cooling system
4. Digital meter counters
5. Control instruments for hydraulic system and diesel engine
6. Rigid axles for towing at max speed of 30km/h with mechanical parking brake
7. Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders with independent controls
8. Hydraulic front stabilizer
9. Grounding connection point
