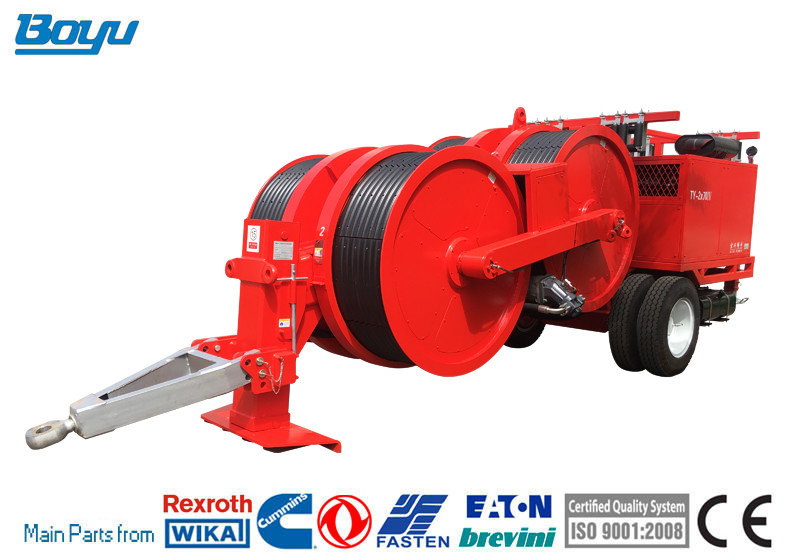

Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner

Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner
Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner

Large Image :  Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x70IV
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Stringing Equipment 2x70KN Hydraulic Tensioner Max Reverse Pulling Force: 2×60kN
Pulling At Max Speed: 2×30kN Bull-wheel Diameter: 1500mm
Weight Of The Whole Machine: 10500kg Main Pump: German Rexroth
High Light:

2X35kN overhead line stringing tools

,

1500mm overhead line stringing tools

,

2x70KN hydraulic wire tensioner

Overhead Transmissio Line Stringing Equipment 2x70KN Hydraulic Tensioner



Main technical performance

Tension condition

Max intermittent tension

2×70kN

Max continuous tension

2×65kN

Speed at max tension

2.5km/h

Max speed

5km/h

Tension at max speed

2X35kN



Traction condition

Max reverse pulling force

2×60kN

Speed at max pulling force

2.5km/h

Max reverse pulling speed

5km/h

Pulling at max speed

2×30kN



Characteristics

  • It adopts hydraulic motor from Germany Rexroth and compose double-circuit hydraulic transmission system. It has advanced technology, high transmission efficiency and credible quality and could save power.
  • Friction plate type wet brake is adopted and integrated in planetary reducer, it Can be free from routine maintenance. With spring brake, hydraulic release, simple operation, short reaction time, it can realize gapless braking, it’s safe and reliable. In shutdown mode, all kinds of hydraulic filters have bypass valves to protect the system from damage.
  • It could deliver or counter-stretch two wires at the same time, tension and traction of every wire could be adjusted separately and seen from manometer directly. Otherwise, one wire could stop or deliver under tension while another wire is counter-stretching and collecting.
  • It adopts planetary reducer from Germany Rexroth, has compact configuration and credible quality.



Structure Parameters

Bull-wheel diameter

1500mm

Groove numbers

2×8

Max conductor diameter

40mm

Weight of the whole machine

10500kg

Overall dimension (length, width, height)

5300X2300X2600



Electrical System

System voltage

24V

Storage battery

6-QA-110

Diesel engine starting

24V electric starting



Engine

Model

Cummins 4BT3.9-C105

Nominal speed

2800r/min

Nominal power (1 hour)

77KW



Transmission System

With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. hen inverted, the magnitude of reverse traction force is led by exit pressure of pump.

In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.

Main pump

Type

Hydraulic control bidirectional variable plunger pump(German Rexroth)

Model

A4VG90HD3

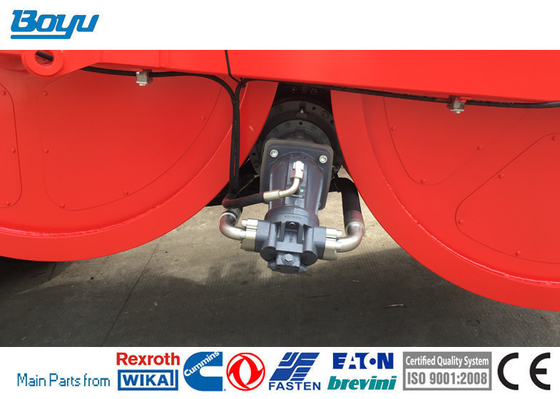

Hydraulic motor

Type

Two-way Quantitative Plunger Piston Motor(German Rexroth)

Model

A2FM90

Speed reducer

Type

planet Gear Decelerator

Model

307 L2

Reduction ratio

17.4

Brake opening pressure

2.5MPA
