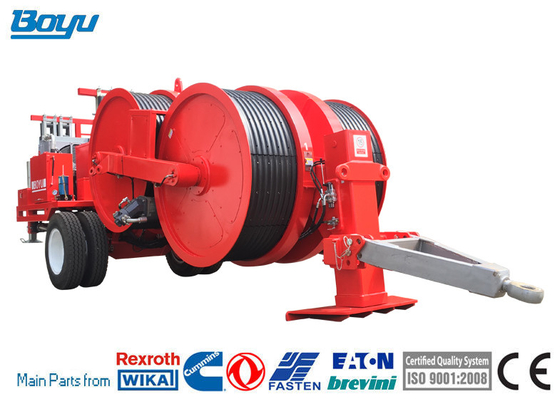

Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner

Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner
Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner

Large Image :  Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x70IV
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Overhead Power Line Tension Stringing Equipment Hydraulic Conductor Tensioner Main Pump: Hydraulic Control Bidirectional Variable Plunger Pump( German Rexroth)
Hydraulic Motor: Two-way Quantitative Plunger Piston Motor( German Rexroth) Speed Reducer: Planet Gear Decelerator
Bull-wheel Diameter: 1500mm Max Reverse Pulling Force: 2×60kN
High Light:

40mm conductor stringing machine

,

2×65kN conductor stringing machine

,

Hydraulic conductor stringing equipment

Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner



Performance Parameter

  • Model: TY2x70IV
  • Max intermittent tension: 2×70kN
  • Max continuous tension: 2×65kN
  • Speed at max tension: 2.5km/h
  • Tension at max speed: 2x35kN
  • Max speed: 5km/h
  • Max reverse pulling speed: 5km/h
  • Max reverse pulling force: 2×60kN
  • Speed at max pulling force: 2.5km/h
  • Max conductor diameter: 40mm
  • Pulling at max speed: 2×30kN
  • Bull-wheel diameter: 1500mm
  • Weight of the whole machine: 10500kg
  • Groove numbers: 2×8
  • Overall dimension (length, width, height): 5300X2300X2600
  • Engine: Cummins 4BT3.9-C105
  • Nominal speed: 2800r/min
  • Nominal power (1 hour): 77KW
  • Main pump: Hydraulic control bidirectional variable plunger pump(German Rexroth)

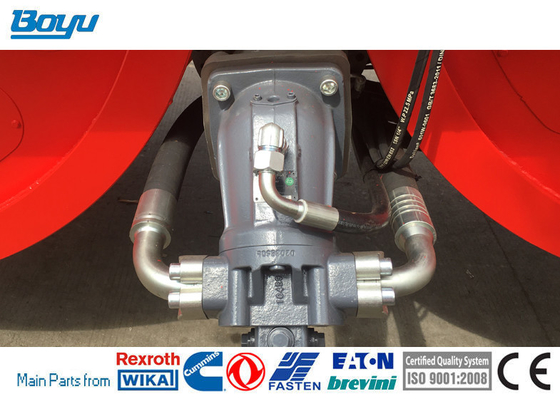

  • Hydraulic motor: Two-way Quantitative Plunger Piston Motor(German Rexroth)

  • Speed reducer: planet Gear Decelerator

  • Reduction ratio: 17.4

  • Brake opening pressure: 2.5MPA

  • System voltage: 24V

  • Storage battery: 6-QA-110

  • Diesel engine starting: 24V electric starting

Overhead Power Line Tension Stringing Equipment Max Continuous Tension 2×65kN Hydraulic Conductor Tensioner 0



Safety Warning

Before you use, maintain and repair the machine, please carefully read and fully understand the operation instruction, and strictly abide by precautions and warning of relevant safety; fine maintenance and correct use and operation can reduce failure and extend machine life.

(1) Both operators of puller and tensioner shall communicate with each other to avoid that puller begins to work under operating condition that tensioner is not tension laying and cause serious accident.

(2) When tensioner works, it is prohibited that operators give up operating or leave tensioner.

(3) When operating tensioner, you shall control handle and adjust pressure steadily and avoid over-violent and quick force and brutal operation. When tension laying , special attention shall be paid to prevent reducing or increasing tension to a large extent to result in conductor fluctuating greatly and damaging span frame and other buildings.

(4) In the process of tension laying, it is strictly prohibited that brake handle is put in brake position; otherwise, serious accident will be caused.

(5) Absolutely prohibit using reverse pulling function to brake.

(6) In the process of tension laying , continuously observe each pointer; water temperature of engine shall be not more than 95℃; hydraulic oil temperature shall be not more than 85℃; Oil-filling pressure shall be not less than 1Mpa and not more than 1.8Mpa; brake oil pressure shall be not less than 1.8Mpa and not more than 4Mpa. Otherwise, the machine shall be stopped immediately for check.

(7) Pressure of each safety valve shall be preset, avoid random adjustment! If accidents, for example, tensioner fails to work, are caused from adjusting valve without permission, it will bring you much trouble and loss.

(8) Regularly check the fixed bolt of the nylon sector, prevent loose bolt to damage the wires and cause unnecessary losses.

(9)When tensioner operates, rotary speed of engine keeps around 1200r/min to maintain higher power and prevent overheating of hydraulic oil.

(10) When tension stringing, the pull handle should be middle position. It is forbidden to throw the handle to prevent to cause serious accident as running line.

(11)Under operating condition of driving, to change driving direction of tensioner shall be carried out after tension pulleys stop completely.

(12) When tensioner operates, prohibit filling oil and repairing; when repair is needed, make engine flame out, in addition to reliable brake.

(13) Don’t leave inflammables in exhaust pipe and muffler to avoid fire. When you touch above-mentioned parts, be care of burning your hands.
