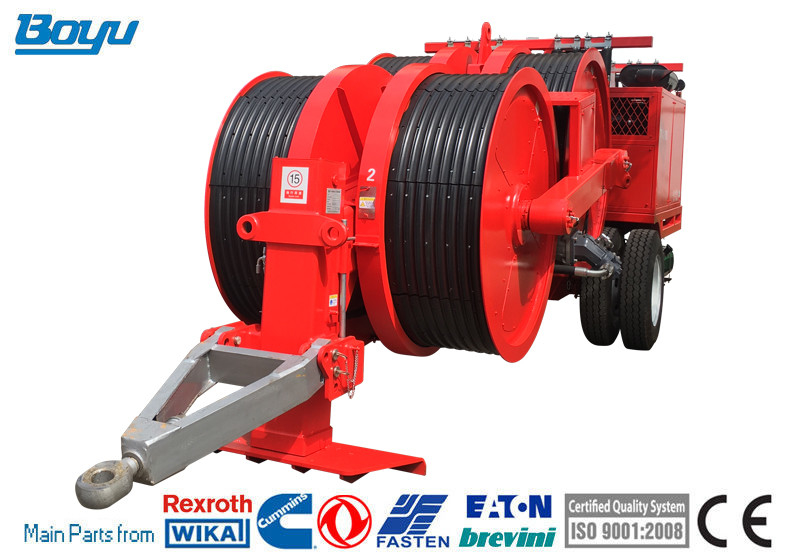

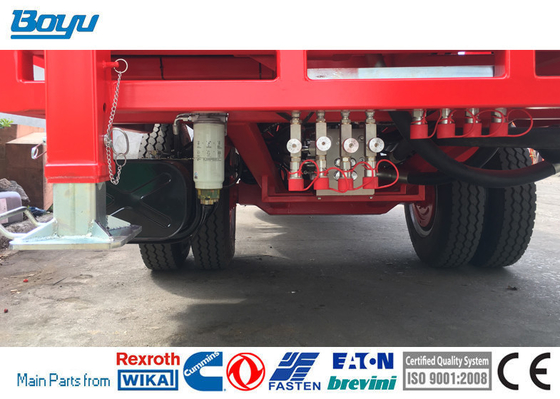

Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine

Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine
Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine

Large Image :  Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x70IV
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Overhead Tension Stringing Equipment Conductor Tensioner Max Intermittent Tension: 2×70kN
Max Continuous Tension: 2×65kN Engine: Cummins 4BT3.9-C105
Nominal Speed: 2800r/min Nominal Power (1 Hour): 77KW
High Light:

77KW overhead transmission line stringing equipment

,

103hp overhead transmission line stringing equipment

,

CTU conductor tensioner unit

Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine



Max intermittent tension

2×70kN

Max continuous tension

2×65kN

Max speed

5km/h

Tension at max speed

2x35kN

Speed at max tension

2.5km/h

Speed at max pulling force

2.5km/h

Max reverse pulling force

2×60kN

Pulling at max speed

2×30kN

Max reverse pulling speed

5km/h

Groove numbers

2×8

Weight of the whole machine

10500kg

Bull-wheel diameter

1500mm

Overall dimension (length, width, height)

5300X2300X2600

Max conductor diameter

40mm

Engine

Cummins 4BT3.9-C105

Nominal power (1 hour)

77KW

Nominal speed

2800r/min

Main pump

Hydraulic control bidirectional variable plunger pump(German Rexroth)

Model

A4VG90HD3

Speed reducer

planet Gear Decelerator

Model

307 L2

Brake opening pressure

2.5MPA

Reduction ratio

17.4

Hydraulic motor

Two-way Quantitative Plunger Piston Motor(German Rexroth)

Model

A2FM90

System voltage

24V

Storage battery

6-QA-110

Diesel engine starting

24V electric starting



Overhead Tension Stringing Equipment Conductor Tensioner With Electric Starting Engine 0



The Emplacement of Tension Machine

  • Haul puller into selected field to put; make incoming line groove of pulling wheel aim to rod tower center as much as possible; the deviation range is ±15°to reduce horizontal load.
  • Anchoring puller. Center stressing direction of anchor bed shall align with stretch direction of anchor in order to make anchor bear pulling force and not bear lateral force. When anchoring, anchor block, steel wire rope loop, shackle, lifting hoist or double hook with above 5-ton stress shall be used; directly pre-tension the anchor after jointing. Pull out the bolt of end leg and adjust the leg to right position.
  • The drum elevator is behind of tensioner into a fan-shaped, 10 meters off the tension machine, one side with brake disc should be putted slower slightly. Anchor the drum elevators.
  • Connect oil inlet pipe and return pipe of tail quick coupling to the hydraulic tail vehicle. Attention that clean the dust and other sundry in the connector to prevent them into hydraulic system.

Special Attention:

  1. The force of the tension machine may be large, so it has particularly high request for ground anchor to ensure the reliability of the ground anchor.
  2. In mountains and hilly areas, due to the space limitations, the tension machine can’t be in place at the center of the line, it has to be pushed to the right place by manpower. During this process, the potential energy of the machine should be paid particular attention to.
