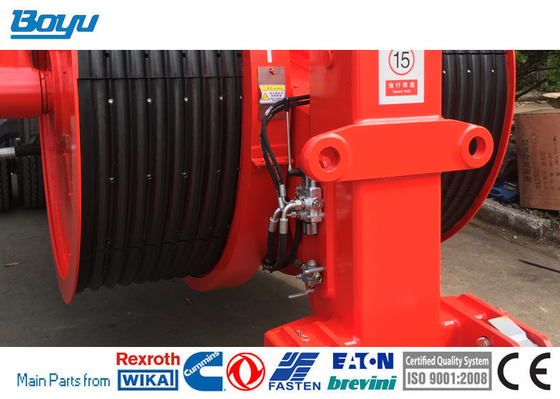

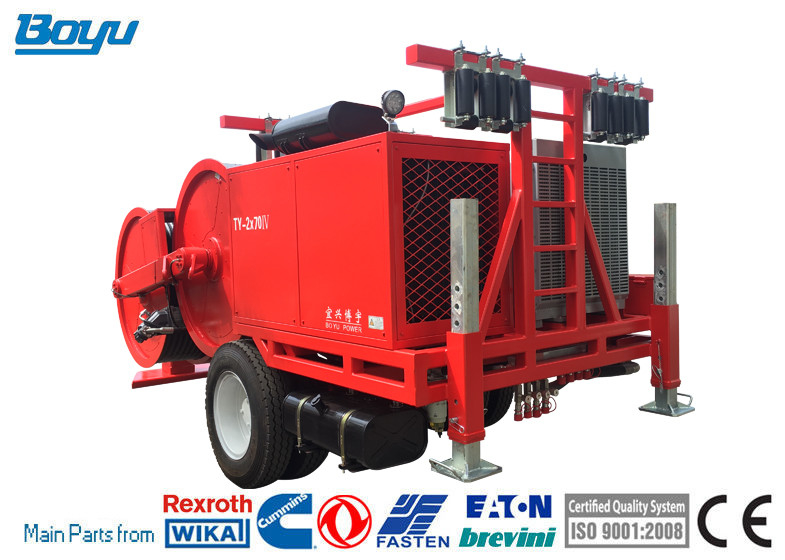

Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine

Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine
Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine

Large Image :  Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY2x70IV
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Tension For Overhead Line Bull-wheel Diameter: 1500mm
Groove Numbers: 2×8 Max Conductor Diameter: 40mm
Weight Of The Whole Machine: 10500kg Overall Dimension (length, Width, Height): 5300X2300X2600
High Light:

1500mm overhead line stringing tools

,

2×60kN overhead line stringing tools

,

Cummins Engine hydraulic tensioners

Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine



Performance Parameter



Structure Parameters
Bull-wheel diameter 1500mm
Groove numbers 2×8
Max conductor diameter 40mm
Weight of the whole machine 10500kg
Overall dimension (length, width, height) 5300X2300X2600



Main technical performance

Tension condition

Max intermittent tension

2×70kN

Max continuous tension

2×65kN

Speed at max tension

2.5km/h

Max speed

5km/h

Tension at max speed

2x35kN

Traction condition

Max reverse pulling force

2×60kN

Speed at max pulling force

2.5km/h

Max reverse pulling speed

5km/h

Pulling at max speed

2×30kN



Transmission System
With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. hen inverted, the magnitude of reverse traction force is led by exit pressure of pump. In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.
Main pump
Type Hydraulic control bidirectional variable plunger pump(German Rexroth)
Model A4VG90HD3
Hydraulic motor
Type Two-way Quantitative Plunger Piston Motor(German Rexroth)
Model A2FM90
Speed reducer
Type planet Gear Decelerator
Model 307 L2
Reduction ratio 17.4
Brake opening pressure 2.5MPA



Engine
Model Cummins 4BT3.9-C105
Nominal speed 2800r/min
Nominal power (1 hour) 77KW



Electrical System
System voltage 24V
Storage battery 6-QA-110
Diesel engine starting 24V electric starting



Tension Stringing Equipment Hydraulic Tension For Overhead Line With Cummins Engine 0



Inspection before Operation

1. Check lubricating grease in open type gear box, if the lubricating grease is short, it shall be filled on the gear between two pulling wheels. Type of lubricating grease: general lithium base grease for automobile.

2. Check oil mass in hydraulic oil tank (taking lower limit of oil level scale as the standard), if the oil is short, it shall be filled. Oil type: 8D#low solidifying hydrodynamic drive oil.

3. Check fuel oil in fuel tank of engine, if the fuel oil is short, it shall be filled.

4. Check engine oil, if the engine oil is short, it shall be filled to prescribed oil level

5. Check cooling water in water tank of engine, if the cooling water is short, it shall be filled (special explanation: Do add anti-freezing fluid if the ambient temperature is below 5°).

6. Check whether high-pressure oil pipe joints of hydraulic pump and motor are firm.
