Product Details:
Payment & Shipping Terms:
|
| Type: | Stringing Equipment Hydraulic Tensioner | Max Reverse Pulling Speed: | 5km/h |
|---|---|---|---|
| Total Weight: | 4500kg | Max Continuous Pull: | 2x35kN |
| Speed At Max Pull: | 2.5km/h | Engine: | Cummins |
| High Light: | hydraulic tensioner transmission line stringing,hydraulic tensioner overhead line stringing,hydraulic tensioner stringing machine |
||

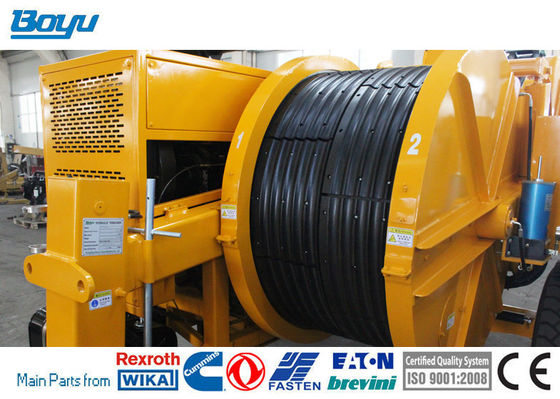

Stringing Equipment Hydraulic Tensioner Max Intermittent Pull 2x40kN
Performance
|
Max intermittent pull |
2x40kN |
|
Max continuous pull |
2x35kN |
|
Pull at max speed |
2x20kN |
|
Max reverse pulling force |
2x30kN |
|
Max reverse pulling speed |
5km/h |
|
Speed at max pull |
2.5km/h |
|
Max speed |
5km/h |
|
Groove number |
2x5 |
|
Bull-wheel diameter |
1300mm |
|
Total weight |
4500kg |
|
Max conductor diameter |
40mm |
|
Overall dimension (length*width*height) |
4300*2250*2700mm |
|
Engine |
Cummins |
|
Main motor |
German Rexroth/French Leduc |
|
Hydraulic meter |
German |
|
Hydraulic pump |
German Rexroth/Dnish Danfoss |
|
Operating handle |
German Rexroth |
|
Speed reducer |
German Rexroth / Italy Brevini |
|
Diesel |
77kw(103hp) |
|
Electrical system |
24V |
|
Cooling system |
water |
| Model |
Max intermittent tension |
Max continuous tension | Speed at max tension | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Electrical system |
| kN | kN | km/h | kN | kN | km/h | kw(hp) | V | |
| TY1X7.5 | 7.5 | |||||||
| TY1X20 | 20 | |||||||
| TY1X20II | 20 | |||||||
| TY1X30 | 30 | 2.5 | 15 | 20 | 12(16) | 12 | ||
| TY1X40 | 45 | 40 | 2.5 | 20 | 35 | 77(103) | 24 | |
| TY1X50 | 50 | 40 | 2.5 | 25 | 45 | 2.4 | 77(103) | 24 |
| TY140IV | 1x140 | 1x120 | 2.5 | 35 | 1x120 | 1.2 | 77(103) | 24 |
| TY2X35 |
2x40/ 1x80 |
2x35/ 1x70 |
2.5 |
2x20/ 1x40 |
2x30/ 1x60 |
5 | 77(103) | 24 |
| TY2X40 |
2x45/ 1x90 |
2x40/ 1x80 |
2.5 |
2x20/ 1x40 |
2x35/ 1x70 |
5 | 77(103) | 24 |
| TY2X50 |
2x55/ 1x110 |
2x50/ 1x100 |
2.5 |
2x25/ 1x50 |
2x45/ 1x90 |
5 | 77(103) | 24 |
| TY2x70IV |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 |
2x25/ 1x50 |
2x60/ 1x120 |
5 | 77(103) | 24 |
| TY2X90 |
2x100/ 1x200 |
2x90/ 1x180 |
2.5 |
2x40/ 1x80 |
2x80/ 1x160 |
2 |
130kw (2500r/min) |
24 |
| TY4x50 |
4x50/ 2x200 |
4x40/ 2x80 |
2.5 |
4x20/ 2x40 |
4x40/ 2x80 |
1.25 | 77(103) | 24 |
