Hydraulic 130kN Tension Stringing Equipment 3km/H Pulling Speed

small.img.alt small.img.alt

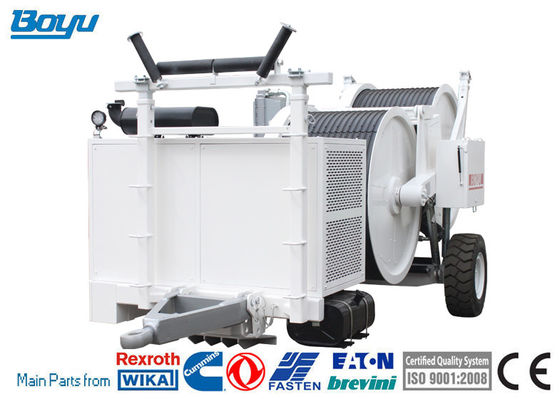

Large Image :  Hydraulic 130kN Tension Stringing Equipment 3km/H Pulling Speed

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY1x120III-6
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: TY1x120III Tension Stringing Equipment Hydraulic Tensioner Maximum Intermittent Tension: 130KN
Maximum Continuous Tension: 120KN Engine: Cummins 4BTA3.9-C130
Maximum Back Pulling Force: 90KN Maximum Back Pulling Speed: 3km/h
High Light:

130kN Tension Stringing Equipment


Hydraulic Tension Stringing Equipment


3km/h Tension Stringing Equipment

TY1x120III Tension Stringing Equipment Hydraulic Tensioner Maximum Intermittent Tension 130kN

  • During the process of construction under tension stringing, tension machine is an indispensable one of the main equipment. Whether its performance is good or bad will impact the quality and schedule of construction under tension stringing directly.
  • Our tension machine has rational design and high safety factor, its main components are chose from world’s leading professional manufacturer, such as Germany Rexroth, Germany , U.S. Eaton, Italy Atos and so on, other corollary parts are also chose from the best domestic products.
  • Otherwise, our company has strict production management, thereby all these effectively ensure the excellent performance and credible quality of this product and win the favor of users.

Main technical performance

  • Maximum intermittent tension: 130KN
  • Maximum continuous tension: 120KN
  • Corresponding speed: 2.5km/h
  • Maximum payoff speed: 5km/h
  • Corresponding tension: 60KN
  • Maximum back pulling force: 90kn
  • Maximum back pulling speed:3km/h
  • Diameter of tensile force wheel: 1500mm
  • Groove numbers: 15
  • Maximum applicable diameter of wire: 40mm
  • Transport dimensions
  • Length: 5300mm
  • Width: 2300mm
  • Height: 2600mm
  • Total weight:8100kg

Main pump:

  • Type: Hydraulic control bidirectional variable plunger pump(Germany Rexroth )
  • Model: A4VG71EP4/32R

Hydraulic motor:

  • Type: Two-way Quantitative Plunger Piston Motor (Germany Rexroth)
  • Model: A2FM180/61W

Speed reducer:

  • Type: planet Gear Decelerator (Italy Bonfiglioli)
  • Model: 310 L2
  • Reduction ratio: 28
  • Brake opening pressure: 1.8MPA


  • Model: Cummins 4BTA3.9-C130
  • Rated power: 97kw/2500rpm

Transmission System

With closed double-loop hydraulic transmission system and planet decelerator, tension wheel is driven by primary gear. With inversion, the magnitude of reverse traction force is led by exit pressure of pump. In tension condition, hydraulic motor rotation is driven by the tension wheel; the magnitude of tension is controlled by regulating the motor exit pressure.

Electrical System

  • System voltage: 24V
  • Storage battery: 6-QA-110(2 sets)
  • Diesel engine starting: 24V electric starting
The main components such as the engine, main hydraulic pump, hydraulic motor, reducer, and main valve block are all imported parts, and the system runs stably and reliably.
The laying tension is steplessly adjustable, the display is intuitive, and it has a good pull back function.
The friction plate wet brake is integrated in the planetary reducer to avoid daily maintenance. Spring brake, hydraulic release, easy operation, short response time, can achieve no gap braking, safe and reliable, in the stopped state, it can prevent the line running accident caused by the loosening of the tail line.
Adopt German Rexroth planetary reducer and hydraulic motor, compact structure, form an advanced closed loop hydraulic transmission system, advanced technology, power saving, high transmission efficiency and reliable quality.
The TY1×120III tension machine adopts a single-axle trailer structure with a beautiful appearance. The front end is equipped with a reversible traction tractor, which is convenient for hauling.
