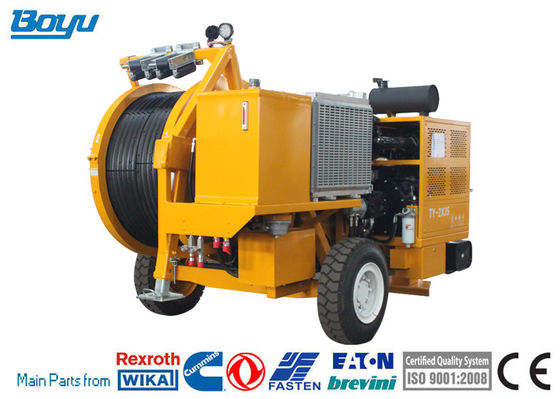

Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner

Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner
Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner
video play

Large Image :  Water Cooling System Speed at Max Pull 2.5km/h Hydraulic Cable Tensioner

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x35-1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Overhead Line Stringing Equipment Hydraulic Tensioner Engine: Cummins
Hydraulic Pump: German Rexroth/Dnish Danfoss Max Intermittent Pull: 2x40kN
Max Continuous Pull: 2x35kN Pull At Max Speed: 2x20kN
Overall Dimension (length*width*height): 4300*2250*2700mm Max Conductor Diameter: 40mm
High Light:

hydraulic cable tensioner

,

water cooling system hydraulic tensioner

,

hydraulic tensioner for cable

TY2x35 Overhead Line Stringing Equipment Hydraulic Tensioner With Water Cooling System



Characteristics

Bull-wheel diameter

1300mm



Max conductor diameter

40mm



Groove number

2x5



Total weight

4500kg



Overall dimension (length*width*height)

4300*2250*2700mm

Performance

Max intermittent pull

2x40kN



Max continuous pull

2x35kN



Speed at max pull

2.5km/h



Max speed

5km/h



Pull at max speed

2x20kN



Max reverse pulling force

2x30kN



Max reverse pulling speed

5km/h

Main configuration

Engine

Cummins



Hydraulic pump

German Rexroth/Dnish Danfoss



Main motor

German Rexroth/French Leduc



Speed reducer

German Rexroth / Italy Brevini



Hydraulic meter

German



Operating handle

German Rexroth

Engine

Diesel

77kw(103hp)



Cooling system

water



Electrical system

24V



Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Digital speed and meter counter
  • Grounding connection point
  • Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

  • Lighting system for the trailer
  • Air brake system for the trailer (extra charge)
  • 2 hydraulic conductor clamps for drum change operations (extra charge)
  • Swivel guide rope roller
