Product Details:
Payment & Shipping Terms:
|
| Rated Tension: | 2x80kN / 1x160kN | Engine: | Cummins |
|---|---|---|---|
| Diesel: | 97kw(130hp) | Cooling System: | Water |
| Groove Number: | 2x6 | Max Reverse Pulling Force: | 2x40kN/1x80kN |
| Max Conductor Diameter: | 48.75mm | Pull At Max Speed: | 2x40kN/1x80kN |
| Overall Dimension (length*width*height): | 5520×2280×2850mm | Type: | Tensioner Machine For Overhead Stringing |
| High Light: | cable line tensioner,overhead line equipment |
||

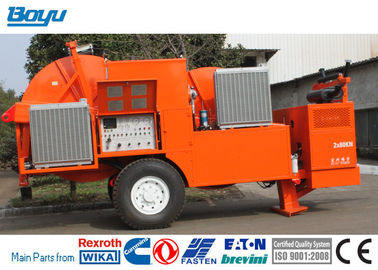

Tensioner Machine For Overhead Stringing TY2x80 97kw Hydraulic Tensioner
| Max tension | 2x100kN / 1x200kN |
| Rated tension | 2x80kN / 1x160kN |
| Speed at max tension | 2.5km/h |
| Max feeding speed | 5km/h |
| Pull at max speed | 2x40kN/1x80kN |
| Max reverse pulling force | 2x40kN/1x80kN |
| Max reverse pulling speed | 3km/h |
| Bull-wheel diameter | 1850mm |
| Groove number | 2x6 |
| Max conductor diameter | 48.75mm |
| Total weight | 10000kg |
| Overall dimension (length*width*height) | 5520×2280×2850mm |
| Diesel | 97kw(130hp) |
| Cooling system | water |
| Electrical system | 24V |
| Engine | Cummins |
| Hydraulic pump | German Rexroth/Dnish Danfoss |
| Main motor | German Rexroth/French Leduc |
| Speed reducer | German Rexroth |
| Hydraulic meter | German |
| Operating handle | German Rexroth |
| Hydraulic Transmission |
| The machine can realize step less speed. |
| The machine is provided with tension presetting system. |
| Configuration |
| 2 negative self-acting hydraulic brakes |
| 2 hydraulic dynamometers |
| Hydraulic oil cooling system |
| 2 digital meter counters |
| 2 digital speed meters |
| Control instruments for hydraulic system and diesel engine |
| Rigid axle for towing at max speed of 30km/h with mechanical parking brake |
| Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor |
| Grounding connection point |
| Additional Devices |
| Lighting system for the trailer |
| 2 hydraulic rope/conductor clamp (extra charge) |
| Swivel guide rope roller |
| Trailer for towing at max speed of 30 km/h |
| Digital speed and meter counter |
| Air brake system for the trailer |
