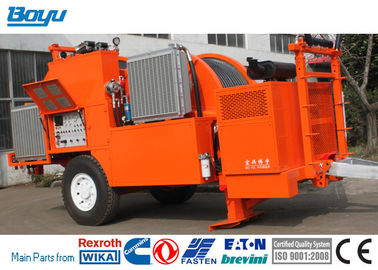

TY2x80 Hydraulic Tensioner Machine Rated Tension 2x80kN / 1x160kN

large.img.alt
large.img.alt
video play

Large Image :  TY2x80 Hydraulic Tensioner Machine Rated Tension 2x80kN / 1x160kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x80-26
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Max Tension: 2x100kN / 1x200kN Rated Tension: 2x80kN / 1x160kN
Speed At Max Tension: 2.5km/h Bull-wheel Diameter: 1850mm
Groove Number: 2x6 Overall Dimension (length*width*height): 5520×2280×2850mm
Engine: Cummins Diesel: 97kw(130hp)
High Light:

transmission line stringing equipment

,

overhead line equipment



Tension Stringing Equipment TY2x80 Hydraulic Tensioner Rated Tension 2x80kN / 1x160kN



TY2x80 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 1000mm2 in flat lands; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1850mm

Groove number: 2x6

Max conductor diameter: 48.75mm

Total weight: 10000kg

Overall dimension (length*width*height):5520×2280×2850mm

Performance

Max tension: 2x100kN / 1x200kN

Rated tension: 2x80kN / 1x160kN

Speed at max tension: 2.5km/h

Max feeding speed: 5km/h

Pull at max speed: 2x40kN/1x80kN

Max reverse pulling force: 2x40kN/1x80kN

Max reverse pulling speed: 3km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German

Operating handle: German Rexroth

Engine

Diesel 97kw(130hp)

Cooling system water

Electrical system 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer



TY2x80 Hydraulic Tensioner Machine Rated Tension 2x80kN / 1x160kN 0

At present, our annual output value exceeds 30 million US dollars.

Our company has provided more than 4,000 sets of equipment for customers in the power system.

Our products are very popular in China, and our main customers include CHINA POWER, EETC, STATE GRID, etc.

Our main customer, STATE GRID, ranks second among the world's top 500 companies.

We have also been operating in the international market for more than 10 years and operating in more than 50 countries.

In 2014, our company started to do business in the Philippines.

Our customers include Meralco, Ferrowelds, Jay Engineering, WYN power, MB Versoza, Hansei, Multi Discovery and Sta. Clara et al. (Meralco engineer performs inspection).

Beginning in 2019, we participated in the international bidding of Bolivian and Pakistani government companies, won the bid from Bolivia’s "ENDE Transmision" and entered Pakistan’s "NTDC"
