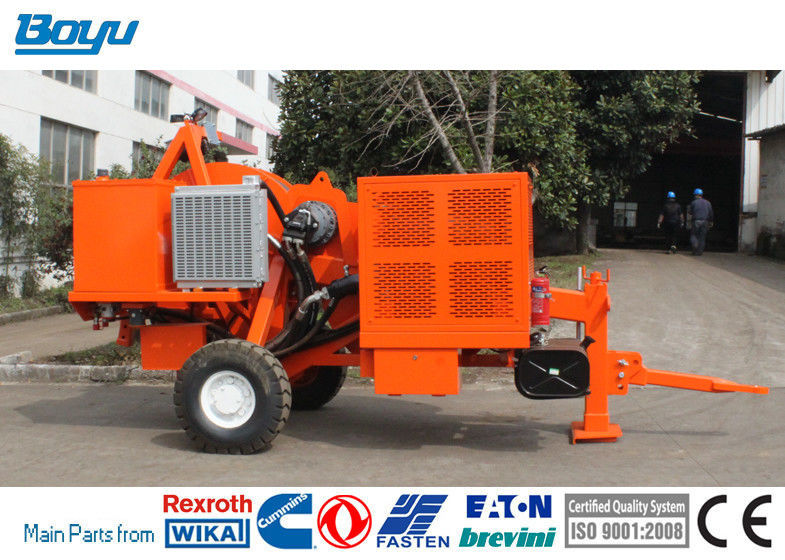

Overhead Stringing Tension Stringing Equipment Diesel 56kw 73hp Hydraulic Tensioner

large.img.alt
large.img.alt
video play

Large Image :  Overhead Stringing Tension Stringing Equipment Diesel 56kw 73hp Hydraulic Tensioner

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY1x40DQ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Engine: Deutz Air Cooled Diesel: 56kw(73hp)
Max Intermittent Pull: 45kN Max Continuous Pull: 40kN
Bull-wheel Diameter: 1300/1500mm Max Conductor Diameter: 40mm
Max Optical Fiber Cable Diameter: 21mm Total Weight: 2800kg
Overall Dimension (length*width*height): 4200×2000×2500mm Type: Tensioner Machine For Overhead Stringing
High Light:

transmission line stringing equipment

,

overhead line equipment

Tensioner Machine For Overhead Stringing Diesel 56kw(73hp) Hydraulic Tensioner



Characteristics
Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Max Optical fiber cable diameter: 21mm
Groove width: 55mm
Groove number: 5
Total weight: 2800kg
Overall dimension (length*width*height): 4200×2000×2500mm
Structural Style: Single bridge trailer
Hydraulic power output: Connected hydraulic lead tail car
Performance
Max intermittent pull: 45kN
Max continuous pull: 40kN

Speed at max pull: 2.5km/h

Max speed: 5km/h
Corresponding Tension: 20kN
Max Reverse Pulling Force: 40kN
Max Reverse pulling Speed: 3km/h
Main configuration
Engine: Deutz air cooled
Quantitative pump: HUADE
Main motor:German Rexroth/French HYDROLEDUC
Speed reducer: German Rexroth / Italy BONFIGLIOLI
Main hydraulic valve parts: German Rexroth/American SUN/Italy ATOS
Engine
Diesel: 56kw(73hp)
Cooling system: air cooled
Electrical system: 24V



Hydraulic Transmission

The machine can realize step less speed

The machine is provided with tension presetting system

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Mechanical meter counters

Grounding connection point

Hydraulic power pack to control drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

Air brake system for the trailer(extra charge)

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter
