Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN

Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN
Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN
video play

Large Image :  Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN

Product Details:
Place of Origin: YIXING
Brand Name: BOYU
Certification: ISO
Model Number: TY1x7.5-21
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Bull-wheel Diameter: 1100mm Max Conductor Diameter: 24mm
Max Optical Fiber Cable Diameter: 21mm Groove Width: 220mm
Groove Number: 1 Total Weight: 850kg
Overall Dimension (length*width*height): 2300×1250x1620mm Max Continuous Pull: 7.5kN
Highlight:

diesel engine generator set

,

diesel engine driven generator

Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN

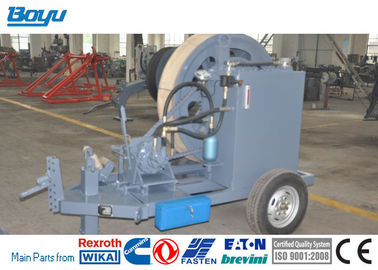

TY1x7.5 Hydraulic Tensioner

  • Applied for tension stringing of the transmission line conductors and ground cables, and ADSS, OPGW optical cables.

Characteristics

  • Bull-wheel diameter: 1100mm
  • Max conductor diameter: 24mm
  • Max Optical fiber cable diameter: 21mm
  • Groove width: 220mm
  • Groove number: 1
  • Total weight: 850kg
  • Overall dimension (length*width*height): 2300×1250x1620mm

Performance

  • Max continuous pull: 7.5kN
  • Max speed: 40m/min

Main configuration

  • Main motor: Ningbo, China
  • Hydraulic meter: German

Hydraulic Transmission

  • Closed hydraulic circuit

Configuration

  • Hydraulic meter
  • Hydraulic control system
  • Hydraulic oil filter
  • Manual brake system
  • Mechanical front stabilizer
  • Grounding connection point

Motor

  • Rated displacement: 243ml/r;
  • Rated pressure: 25MPa
  • Unit torque: 39.2N.m/MPa
  • Max Oil temperature: 60 degree
  • Oil: YA-N46 (0~40 degree); YC-N32 (-30~0 degree)



Tension Stringing Equipment Hydraulic Tensioner Max Continuous Pull 7.5kN 0



Model

Max

intermittent tension

 Max continuous tension Speed at max tension Max speed Max reverse pulling force Max reverse pulling speed Diesel Cooling system Electrical system
kN kN km/h km/h kN km/h kw(hp)   V
TY1X7.5   7.5   2.4
TY1X20   20   5
TY1X20II   20   4
TY1X20III   20 2.5 5 15

10kw

(3600rpm)

 Air
TY1X30   30 2.5 5 20   12(16)   12
TY1X40 45 40 2.5 5 35   77(103) Water 24
TY1X50 50 40 2.5 5 45 2.4 77(103) Water 24
TY140IV 1x140 1x120 2.5 5 1x120 1.2 77(103) Water 24
TY2X35

2x40/

1x80

2x35/

1x70

 2.5 5

2x30/

1x60

 5 77(103) Water 24
TY2X40

2x45/

1x90

2x40/

1x80

 2.5 5

2x35/

1x70

 5 77(103) Water 24
TY2X50

2x55/

1x110

2x50/

1x100

 2.5 5

2x45/

1x90

 5 77(103) Water 24
TY2X70

2x70/

1x140

2x65/

1x130

 2.5 5

2x60/

1x120

 5 77(103) Water 24
TY2x70IV

2x70/

1x140

2x65/

1x130

 2.5 5

2x60/

1x120

 5 77(103) Water 24
TY2X90

2x100/

1x200

2x90/

1x180

 2.5 5

2x80/

1x160

 2

130kw

(2500r/min)

 Water 24
TY4x50

4x50/

2x200

4x40/

2x80

 2.5 5

4x40/

2x80

 1.25 77(103) Water 24
