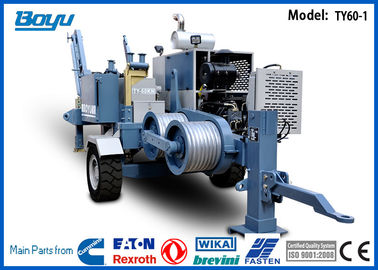

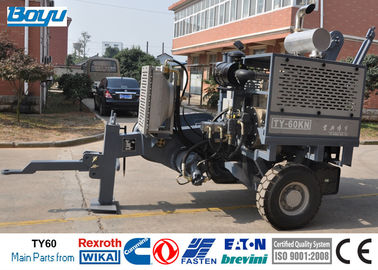

60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller

60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller
60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller
video play

Large Image :  60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY60-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: TT/LC
Supply Ability: 100 sets/month
Detailed Product Description
Product Name: Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller After Sales Service: Available
OEM: Available Max Continous Pulling Force: 50kn
Max Diameter Of Applicable Steel Wire Rope: 18mm Groove Number: 7
Engine: Cummins Main Moterspeed Reducer: German Rexroth
High Light:

conductor stringing equipment

,

overhead transmission line stringing equipment

60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller

Quick details

1.Transmission Line Stringing Equipment
2.Hydraulic 6T Conductor Laying Puller
3.Max pull:60kN
4.Engine:Cummins 77kw
5.Main parts:German Rexroth
6.German

7.Boyu Brand

TY60-1 Hydraulic Puller

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

Performance parameter

Max intermittent pulling force : 60KN
Max continous pulling force: 50KN
Corresponding speed: 2.5km/h
Max continous pulling speed: 5km/h
Corresponding pulling force: 25KN

Structure parameter

Puller wheel diameter: 450mm
Groove number: 7
Max diameter of applicable steel wire rope : 18mm
Max diameter of applicable wire coil: 1400mm
Total weight: 3500kg
overall dimension (length*width*height): 3800×2100×2300mm

Diesel 77kw(103hp)

Cooling system water
Electrical system 24V



Additional Devices

Lighting system for the trailer
Hydraulic rope clamp for reel change(extra charge)

Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counte
r


Main configurations

Engine:Cummins
Main pump: German Rexroth

Operating handle: German Rexroth
Main moterspeed reducer : German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German


Performance parameter max inMax intermittent pulling force 60kn
  Max continous pulling force 50kn
  Corresponding speed 2.5km/h
  Max continous pulling speed 5km/h
  Corresponding pulling force 25KN
Structure parameter Puller wheel diameter 450mm
  Groove number 7
  Max diameter of applicable wire coil: 1400mm
Main comfigurations Engine Cummins
  Main pump German Rexroth


Production pictures

60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller 0

Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.
Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
1: Electric power construction tools
2: Nonmetallic galvanized the production equipment (Achieved high-tech products)
3: Numerical control machine
4: Low voltage no power-arc furnace compensation system

History

Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.

60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller 1

Our service
60KN Transmission Line Stringing Equipment Hydraulic 6T Conductor Laying Puller 2
Quality, loyalty and service is our faith!

1.Deemed continuous improvement as our permanent pursuits.
2.We have introduced many advanced equipments and mature techniques, to meet various of customers’ requirements.
3.We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment.
4.We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
5. 24-hour hot line: 86-0510-80329270. Once receive the customer’s enquiry , we will response within 24 hours.
6.Do the best  Hydraulic 6T Conductor Laying Puller in China.
