Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller

Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller
Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller

Large Image :  Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY180
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Max Intermittent Pulling Force: 180kN Bull-wheel Diameter: 750mm
Groove Number: 10 Max Diameter Of Applicable Pulling Rope: 30mm
Weight: 7800kg Type: Stringing Equipment Hydraulic Cable Puller
High Light:

2.5km/h stringing equipment for overhead power lines

,

TY180 stringing equipment for overhead power lines

,

Groove number 10 hydraulic pulling equipment

Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller



Main technical performance parameter

Max intermittent pulling force 180kN

Max continuous pulling force 150 kN

Speed at max pull 2.5 km/h

Max speed 5 km/h

Pull at max speed 75 kN

Structure parameter

Bull-wheel diameter 750mm

Groove number 10

Max diameter of applicable pulling rope 30mm

Weight 7800kg

Overall dimension (length×width×height) 4800×2350×2550 mm

Engine

Type Cummins 6L8.9AA-C325

Cylinder diameter × stroke 114×144.5 mm

Total air output 8.9 L

Rated speed 2200 r/min

Rated power (one hour power) 239 kw

Max torque 1230Nm

Rotary speed when maximum torque: 1400 r/min

Fuel consumption rate (bench test) 225g/kw.h

Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.

System working pressure 12Mpa

Duplex gear pump 1PF2G2-4X/016+014RR20MRL

Fan motor GM5-12-1FE13-S-20

Hoisting motor J2K-305

Sleeve extension oil cylinder 3TG110×250

Radiator B5024

Electric system

System voltage 24V

Storage battery 6-QA-120(2 pcs)

Engine starting 24V electric starting



Characteristics:

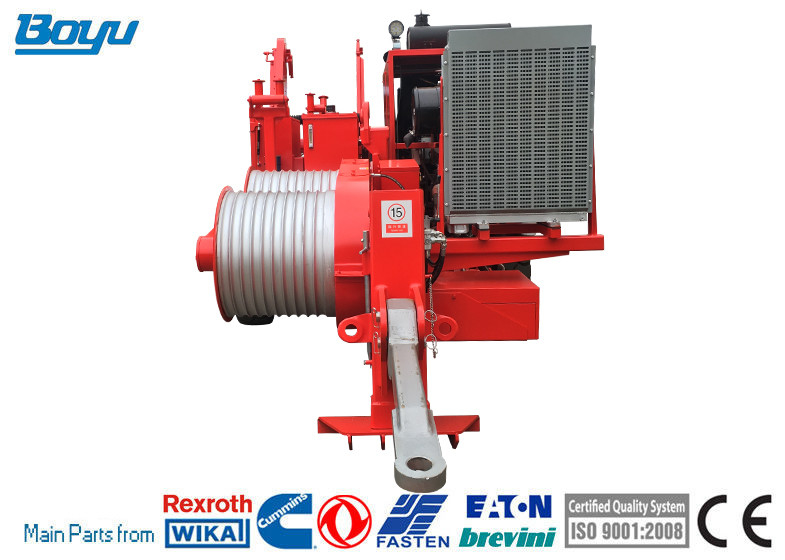

1. The puller is comprised of engine, closed-type hydraulic system, speed reducer drive system, pulling wheel, coiling mechanism of pulling rope, operation system and mainframe. The main puller and coiling mechanism of pulling ropes make up a whole. There is hydraulic lifting stabilizer in the forepart of frame, double stabilizer in the rear part, when working, you can adjust them to working location. The whole machine has compact layout, reasonable space position and operation convenience.

2. The puller adopts installation mode of two-wheel single spindle trailer to be convenient for trans-field transportation. Pulling wheel, engine, hydraulic oil tank and operation board are reasonably arranged on both sides of main girder to make complete machine realize single-point hoisting and convenient hoisting transportation and reduce length of complete machine. The strength safety coefficient of anchor point is big, safe and reliable.

3. The pulling wheel, through special technological treatment, is rustless and abrasion resistant.

4. The pulling wheel can rotate in positive and negative directions, pull pulling rope and deliver pulling rope, and the pulling force can be preset and displayed visually from pressure gauge.

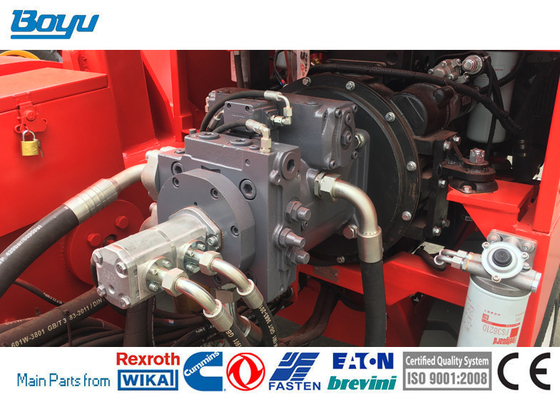

5. The puller is hydraulic drive type, adopts German Rexroth hydraulic control sloping cam plate variable displacement pump, inclined-axis hydraulic motor to form closed type circuit hydraulic drive system. It has advanced technique, power saving, high drive efficiency, reliable quality and self overload protection function to avoid damage of hydrodynamic shock and acceleration of oil temperature rise.

6. Adopt German Rexroth planetary speed reducer with compact structure and reliable quality.

7. Adopt international advanced hydraulic servo control for pulling or backing the machine at present and realize smooth regulation and operation convenience, flexibility and reliability of pulling speed.

8. Adopt friction plate type wet brake; integrated in planetary speed reducer; being free of routine maintenance, with spring brake, hydraulic pressure release, easy operation and rapid reaction speed; zero clearance brake can be realized, safe and reliable. In stopped state, conductor-sliding off accident arising from release of tail rope can be avoided. When the engine flames out suddenly or fails, the brake owns automatic brake protection function.

9. The control handle adopts locating design to be convenient for timely and accurate regulation and control, easy operation and reducing fatigue strength of operator. The operation board can be opened directly from the front to be convenient for inspection and maintenance.

10. Adopt aluminum alloy plate fin radiator. The radiator is carried out forced cooling through hydraulic motor drive fan, with good heat radiation effect and long steady operation time, and can conveniently and in time regulate air output of fan according to practical environment and working temperature.

11. All kinds of hydraulic filters have by-pass value to protect the system free from damage.



Transmission Line Stringing Equipment TY180 Hydraulic Cable Puller 0
