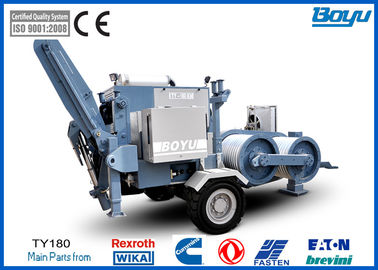

19t Overhead Tension Stringing Equipment Hydraulic Puller with Cummins Diesel Engine

19t Overhead Tension Stringing Equipment Hydraulic Puller with Cummins Diesel Engine


Quick details:

1. High Voltage Tansmission Line Stringing Equipment
2. Hydraulic Pulling machine
3. Main pump and motor: German-Rexroth
4. Max pull: 190kN-19Tons
5. Tail bracket hoisting motor: American-Eton
6. Diesel: Cummins 325hp
7. Max rope diameter: 28mm
8. Max reel size: 1400mm
9. BOYU Brand

Description

This kind of machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains. suitable for use at altitudes up to 1500 meters above sea level.

Performance

1. Max intermittent pull: 190kN
2. Max continuous pull: 180kN
3. Speed at max pull: 2.5km/h
4. Max speed: 6km/h
5. Pull at max speed: 75kN

Main configuration

1. Engine: Cummins
2. Main pump: German-Rexroth
3. Main motor speed reducer: German-Rexroth
4. Tail bracket hoisting motor: American-Eton
5. Hydraulic meter: German
6. Operating handle: German Rexroth

Characteristics

1. Bull-wheel diameter: 750mm
2. Groove number: 10
3. Max rope diameter : 28mm
4. Max diameter of coupling: 100mm
5. Electric system: 24V
6. Max diameter of rope reel: 1400mm
7. Total weight: 6700kg
8. Overall dimension (length*width*height): 5000x2300x2500mm

 Engine

1. Diesel 325hp Euro III, 4-stroke cycle, turbo-charged
2. Cooling system liquid
3. Electrical system 24V

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

1. Hydraulic dynamometer with set-point and automatic control of maximum pull
2. Hydraulic oil cooling system
3. Control instruments for hydraulic system and diesel engine
4. On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
5. Hydraulic front stabilizer
6. Grounding connection point


Additional Devices

1. Lighting system for the trailer
2. Hydraulic rope clamp for reel change(extra charge)
3. Swivel guide rope roller
4. Trailer for towing at max speed of 30 km/h
5. Extra shaft
6. Digital speed and meter counter

Sketch


More picture

Company Introduction

BOYU, We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German

       Operate handle: Rexroth
　　2. Our company was founded in 1995, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. BOYU have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.

19t Overhead  Tension Stringing Equipment Hydraulic Puller with Cummins Diesel Engine
