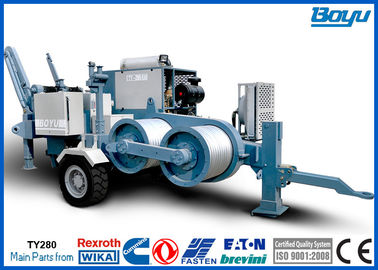

28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN

28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN
28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN
video play

Large Image :  28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY280-5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Price terms.: FOB(Shanghai) or CIF (assigned port).
Detailed Product Description
Product Name: 28 Ton Transmission Line Stringing Equipment After Sales Service: Available
OEM: Available Max Rope Diameter: 38mm
Max Speed: 5km/h Pull At Max Speed: 120kn
Electrical System: 24v Bull-wheel Diameter: 960mm
High Light:

transmission line construction equipment

,

conductor stringing equipment

28 Ton Hydraulic Tension Stringing Equipment with High Power 280kN

Quick details:

  1. Overhead Tansmission Line Stringing Equipment
  2. Hydraulic Puller
  3. Max pull: 280kN 28ton
  4. Max rope diameter: 38mm
  5. Max reel size: 1600mm
  6. Diesel: Cummins 298kw (400hp)
  7. Main pump and motor: German (Rexroth)
  8. Tail bracket hoisting motor: American (Eton)
  9. BOYU Brand

28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 0


Performance

  1. Max intermittent pull: 280kN
  2. Max continuous pull: 250kN
  3. Speed at max pull: 2.5km/h
  4. Max speed: 5km/h
  5. Pull at max speed: 120kN


Description


This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Engine

  1. Diesel 298kw(400hp)
  2. Cooling system water
  3. Electrical system 24V


Characteristics

  1. Bull-wheel diameter: 960mm
  2. Groove number: 11
  3. Max rope diameter : 38mm
  4. Max diameter of coupling: 100mm
  5. Electric system: 24V
  6. Max diameter of rope reel: 1600mm
  7. Total weight: 12800kg
  8. Overall dimension (length*width*height): 5800×2500×2850mm


Main configuration

  1. Engine: Cummins
  2. Main pump: German (Rexroth)
  3. Main motor speed reducer: German (Rexroth)
  4. Tail bracket hoisting motor: American (Eton)
  5. Hydraulic meter: German
  6. Operating handle: German Rexroth


Configuration


Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600
Hydraulic front stabilizer
Grounding connection point


Hydraulic Transmission


Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Additional Devices


Lighting system for the trailer

Air brake system for the trailer
Hydraulic rope clamp for reel change(extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter

28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 1


More pictures (
28 Ton Hydraulic Tension Stringing Equipment with High Power 280kN )


28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 2
Company Introduction
Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German

       Operating handle: German Rexroth
  2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 3
28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 4



Work Site ( 28 Ton Hydraulic Tension Stringing Equipment with High Power 280kN )


28 Ton Hydraulic Tension Stringing Equipment With High Power 280kN 5




28 Ton Hydraulic Tension Stringing Equipment with High Power 280kN



TY280 Hydraulic Puller

This machine is mainly applied in long-span and mountainous areas and foothills for tension stringing of 4-bundle conductor of 500kV or twin-bundle conductor of 220kV and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.

Characteristics

Bull-wheel diameter: 960mm

Groove number: 11

Max rope diameter : 38mm

Max diameter of connector: 100mm

Max diameter of rope reel: 1600mm

Total weight: 15500kg

Overall dimension (length*width*height): 5800×2300×2700mm

Performance

Max intermittent pull: 280kN

Max continuous pull: 250kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 120kN

Engine

Diesel 298kw(400hp)

Cooling system water

Electrical system 24V

Main configuration

Engine: Cummins

Main pump: German Rexroth

Main motor speed reducer: German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German

Operating handle: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1400 and 1600

Hydraulic front stabilizer

Grounding connection point

Additional Devices

Lighting system for the trailer

Air brake system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter
