| Type: | Hydraulic Puller Machine For Transmission Stringing | Max Intermittent Pull: | 90kN |
|---|---|---|---|
| Diesel: | 118kw(158hp) | Cooling System: | Water |
| Electrical System: | 24V | Engine: | Cummins |
| High Light: | 80kn hydraulic puller machine,hydraulic puller machine for transmission stringing,transmission stringing hydraulic pulling equipment |
||

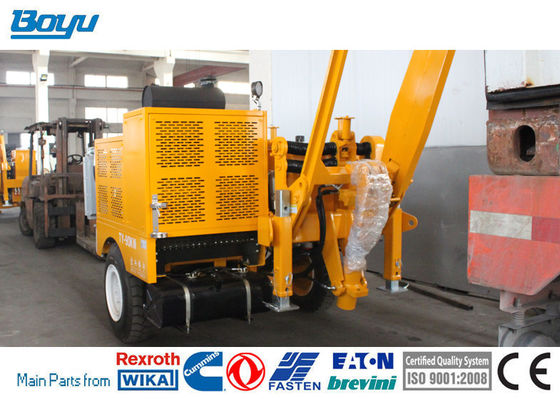

Max Continuous Pull 80kN Hydraulic Puller Machine For Transmission Stringing
|
Characteristics |
Bull-wheel diameter |
540mm |
|
Total weight |
4000kg |
|
|
Groove number |
8 |
|
|
Max diameter of rope reel |
1400mm |
|
|
Max rope diameter |
21mm |
|
|
Overall dimension (length*width*height) |
4000*2200*2100mm |
|
|
Performance |
Max intermittent pull |
90kN |
|
Max continuous pull |
80kN |
|
|
Max speed |
5km/h |
|
|
Speed at max pull |
2.5km/h |
|
|
Pull at max speed |
40kN |
|
|
Main configuration |
Engine |
Cummins |
|
Tail bracket hoisting motor |
American Eton |
|
|
Operating handle |
German Rexroth |
|
|
Hydraulic pump |
German Rexroth |
|
|
Hydraulic meter |
German |
|
|
Speed reducer |
German Rexroth |
|
|
Main motor |
German Rexroth |
|
|
Hydraulic Transmission |
Closed hydraulic circuit, infinitely variable speed in both directions of rotation. | |
| The machine is equipped with tension pre-setting system, which can automatically adjust the running speed according to friction and unexpected load, and keep the preset tension value (when the speed drops to "0"). | ||
|
Engine |
Diesel |
118kw(158hp) |
|
Electrical system |
24V |
|
|
Cooling system |
water |
|
|
Configuration |
Hydraulic oil cooling system |
|
|
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 |
||
|
Grounding connection point |
||
|
Control instruments for hydraulic system and diesel engine |
||
|
Hydraulic dynamometer with set-point and automatic control of maximum pull |
||
|
Hydraulic front stabilizer |
||
|
Additional Devices |
Hydraulic rope clamp for reel change |
|
|
Trailer for towing at max speed of 30 km/h |
||
| Extra shaft | ||
|
Lighting system for the trailer |
||
|
Swivel guide rope rolle |
||
|
Digital speed and meter counter (extra charge) |
||
