Product Details:
Payment & Shipping Terms:
|
| Engine: | Cummins | Hydraulic Pump: | German Rexroth |
|---|---|---|---|
| Main Motor: | German Rexroth | Speed Reducer: | German Rexroth |
| Tail Bracket Hoisting Motor: | American Eton | Type: | Transmission Line Stringing Equipment Hydraulic Puller |
| High Light: | stringing cable pulling machine,transmission line hydraulic puller machine,transmission line hydraulic pulling equipment |
||

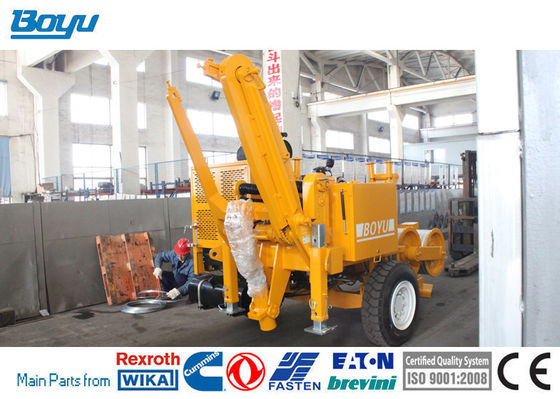

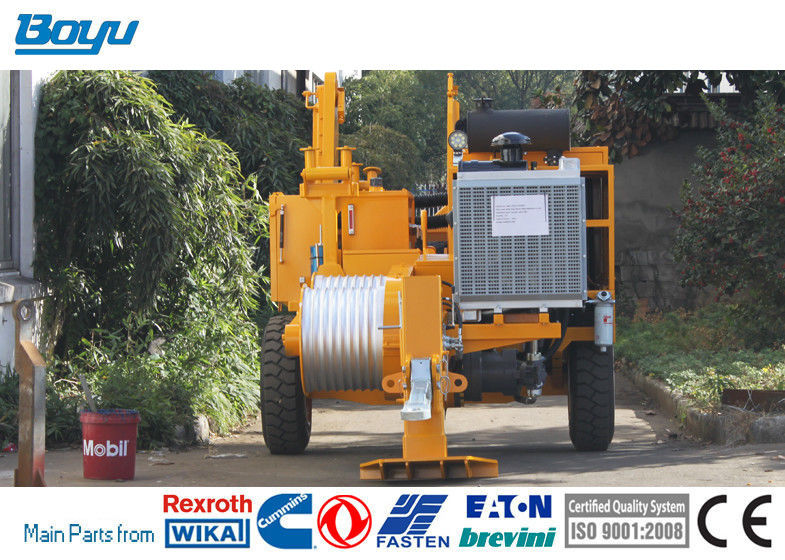

TY90 Transmission Line Stringing Equipment Max Pull 100kN Hydraulic Puller
|
TY90 Stringing Equipment Hydraulic Puller The machine is suitable for tension stringing of double bundle conductors of 500mm2 and below in mountainous and hilly areas, double bundle conductors of 630mm2 and below in flat areas, and 720mm2 single bundle conductors in various terrains; In addition, it can also be used for traction stringing of OPGW or ADSS optical cable and 220kV traction rope under various terrain. |
Characteristics Bull-wheel diameter: 540mm Groove number: 8 Max diameter of rope reel: 1400mm Total weight: 4680kg Max rope diameter: 21mm Overall dimension (length*width*height): 4000×2200×2100mm |
|
Hydraulic Transmission Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. |
Main configuration Engine: Cummins Operating handle: German Rexroth Hydraulic pump: German Rexroth Main motor: German Rexroth Tail bracket hoisting motor: American Eton Speed reducer: German Rexroth Hydraulic meter: German |
|
Engine Diesel: 118kw(158hp) Cooling system: water Electrical system: 24V |
Additional Devices Swivel guide rope roller Lighting system for the trailer Hydraulic rope clamp for reel change Digital speed and meter counter (extra charge) Trailer for towing at max speed of 30 km/h Extra shaft
|
|
Configuration Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine Grounding connection point On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 Hydraulic front stabilizer Hydraulic dynamometer with set-point and automatic control of maximum pull |
|
|
Performance Max intermittent pull: 90kN Max continuous pull: 80kN Max speed: 5km/h Pull at max speed: 40kN Speed at max pull: 2.5km/h |
Other Model
| Model | TY40 | TY60 | TY120 | TY150 | TY220 | TY280 | TY380 | |
| Max intermittent pull | KN | 40 | 60 | 120 | 150 | 220 | 280 | 380 |
| Max continuous pull | KN | 30 | 50 | 100 | 120 | 180 | 250 | 350 |
| Speed at max pull | km/h | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Pull at max speed | KN | 20 | 25 | 50 | 60 | 90 | 120 | 170 |
| Bull-wheel diamete | mm | 400 | 450 | 600 | 600 | 760 | 960 | 960 |
| Max rope diameter | mm | 16 | 18 | 24 | 24 | 30 | 38 | 38 |
| Max diameter of rope reel | mm | 1200 | 1400 | 1400 | 1600 | 1600 | 1600 | 1900 |
