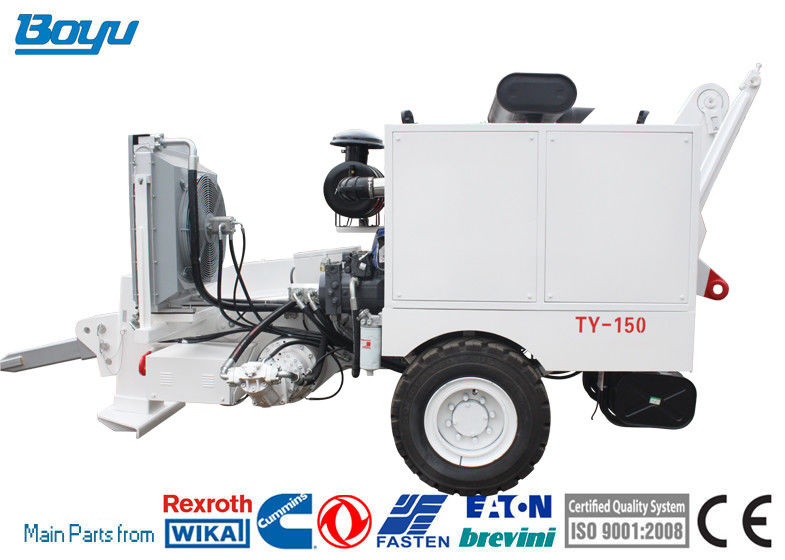

120kN overhead line stringing equipment Forced Cooling

120kN overhead line stringing equipment Forced Cooling
120kN overhead line stringing equipment Forced Cooling 120kN overhead line stringing equipment Forced Cooling

Large Image :  120kN overhead line stringing equipment Forced Cooling

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY150-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Stringing Equipment Puller Machine For Overhead Line Max Intermittent Pulling Force: 150kN
Pulling Wheel Diameter: 600mm Weight: 6600kg
Engine: Cummins 6CTA8.3-C260 Hoisting Mode: Single Point
Highlight:

forced cooling Transmission Line Stringing Equipment

,

120kN overhead line stringing equipment

,

forced cooling overhead line stringing equipment

TY150 Transmission Line Stringing Equipment Puller Machine For Overhead Line



Performance parameter

Main technical performance parameter
Max intermittent pulling force 150kN
Max continuous pulling force 120 kN
Corresponding speed 2.5 km/h
Max continuous tractive speed 5 km/h
Corresponding pulling force 60 kN
Structure parameter
Pulling wheel diameter 600mm
Groove number 9
Max diameter of applicable pulling rope 26mm
Weight 6600kg
Overall dimension (length*width*height) 4800*2350*2470 mm
Hoisting mode single point
Engine
Type Cummins 6CTA8.3-C260
Model Straight type six-cylinder pressurizing four-stroke diesel engine
Cylinder diameter * stroke 114*135 mm
Total air output 8.3 L
Rated speed 2200 r/min
Rated power (one hour power) 194 kw
Max torque 1135Nm
Rotary speed when maximum torque 1500 r/min
Fuel consumption rate (bench test) 238g/kw.h
Cooling method forced air cooling
Drive system
Closed type circuit hydraulic drive system adjusts speed through hydraulic plunger pump with bi-directional variable displacement, reduces speed through planet gear and drives pulling wheels to rotate in positive and negative directions through the first level gear terminal drive.
Cooling mode forced cooling
Main pump
Model sloping cam plate bi-directional plunger pump (German Rexroth)
Type A4VG250EP4DT1/32R-NSF02F021
Hydraulic motor
Model inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
Type A2FE180/61W-VZL106
Speed reducer
Model two-grade planet gear reduction (German Rexroth made by Beijing sole investment plant)
Type 310 L2
Reduction ratio 21.8
Brake response pressure 2.5Mpa
Auxiliary oilway hydraulic system
Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.
System working pressure 12Mpa
Duplex gear pump 1PF2G2-4X/016+014RR20MRL
Fan motor GM5-12-1FE13-S-20
Hoisting motor J2K-305
Sleeve extension oil cylinder 3TG110×250
Radiator B5024
Electric system
System voltage 24V
Storage battery 24V electric starting



Purposes and characteristic

  • The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application.
  • The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force.
  • It can satisfy the stringing of double-bundle LGJ-720 and below conductor in mountainous area and foothills, four-bundle LGJ-630 and below conductor in flatlands, OPGW or ADSS optical cable in various terrains, and 500KV and below wire pulling ropes in various terrains.
