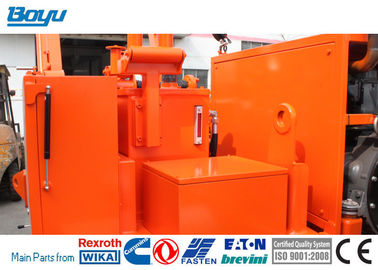

Deutz Engine Transmission Line Stringing Equipment Hydraulic Puller Groove Number 7

large.img.alt
large.img.alt
video play

Large Image :  Deutz Engine Transmission Line Stringing Equipment Hydraulic Puller Groove Number 7

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY30D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Stringing Equipment Hydraulic Puller Max Pull: 35kN
Rated Pull: 30kN Diesel: 56kw(73hp)
Engine: Deutz Air Cooled Max Rope Diameter: 13mm
Electrical System: 24V Max Diameter Of Rope Reel: 1400mm
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment



Transmission Line Stringing Equipment Deutz Engine Hydraulic Puller Groove Number 7



Characteristics
Bull-wheel diameter 300mm
Groove number 7
Max rope diameter 13mm
Applicable to the max connector diameter 40mm
Max diameter of rope reel 1400mm
Total weight 2000kg
Overall dimension (length*width*height) 3200×1600×2000mm
Structure style single bridge trailer

Performance
Max pull 35kN
Rated pull 30kN
Corresponding Pulling Speed 2.5km/h
Corresponding Pulling Force 15kN

Engine
Diesel 56kw(73hp)
Cooling system air cooled
Electrical system 24V

Main configuration
Engine Deutz Air Cooled
Hydraulic pump Denmark Danfoss
Hydraulic motor French HYDROLEDUC
Speed reducer Italy BREVINI
Main hydraulic valve parts German Rexroth/American SUN/Italy ATOS
Tail frame winch motor Denmark Danfoss

Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.


Deutz Engine Transmission Line Stringing Equipment Hydraulic Puller Groove Number 7 0



Company Profile

Deutz Engine Transmission Line Stringing Equipment Hydraulic Puller Groove Number 7 1

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake. Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

  1. Electric power construction tools
  2. Nonmetallic galvanized the production equipment (Achieved high-tech products)
  3. Numerical control machine
  4. Low voltage no power-arc furnace compensation system

Customer support

Our contact person will do the best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and without any commitment from your side. An introduction course has been planned for all the customers that buy Boyu machines, we provide free technical support by means of phone or mail. Also our customers can download operation and maintenance videos from our website.

  1. We will provide some easily damaged parts of the equipment to ensure the normal operation.
  2. If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, BOYU shall take full responsibility and bear all the economic losses incurred.
  3. If any other quality problems occurs within the guarantee period, BOYU shall provide online video service after receive the buyer’s notice in 24 hrs.
  4. If any big quality problems occurs out of the guarantee period, BOYU will also provide online video service after receive the buyer’s notice in 48 hrs.
  5. BOYU will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance, and guarantee 7days courier door by door.
