Diesel 118kw 158hp Puller Transmission Line Stringing Equipment Max Pull 100kn

Diesel 118kw 158hp Puller Transmission Line Stringing Equipment Max Pull 100kn
Diesel 118kw 158hp Puller Transmission Line Stringing Equipment Max Pull 100kn
video play

Large Image :  Diesel 118kw 158hp Puller Transmission Line Stringing Equipment Max Pull 100kn

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY90
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Puller Max Pull: 100kN
Max Continuous Pull: 90kN Engine: Cummins
Diesel: 118kw(158hp) Max Diameter Of Rope Reel: 1400mm
Total Weight: 4350kg Speed At Max Pull: 2.5km/h
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment



Transmission Line Stringing Equipment Diesel 118kw(158hp) Hydraulic Puller Max Pull 100kN

  • This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
  • Besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
Model TY90
Max Pull 100kN
Diesel 118kw(158hp)
Engine Cummins



Performance

  1. Max pull: 100kN
  2. Max continuous pull: 90kN
  3. Speed at max pull: 2.5km/h Max speed: 5km/h
  4. Pull at max speed: 40kN

Characteristics

  1. Bull-wheel diameter: 540mm
  2. Groove number: 8
  3. Max rope diameter : 21mm
  4. Max diameter of rope reel: 1400mm
  5. Total weight: 4350kg
  6. Overall dimension (length*width*height): 4500×2100×2450mm

Engine

  1. Diesel: 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged
  2. Cooling system: liquid
  3. Electrical system: 24V

Main configuration

  1. Engine: Cummins
  2. hydraulic pump: German Rexroth
  3. Main motor: German Rexroth
  4. speed reducer: German Rexroth
  5. Tail bracket hoisting motor: American Eton
  6. Hydraulic meter: German
  7. Operating handle: German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions.

This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

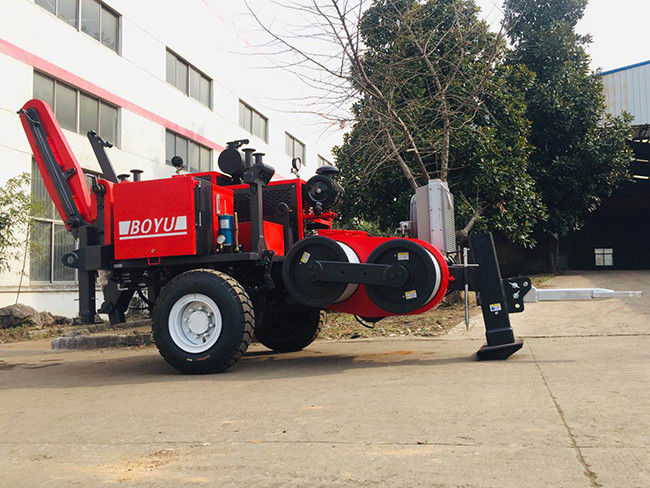

Diesel 118kw 158hp Puller Transmission Line Stringing Equipment Max Pull 100kn 0



Other Models

Model   TY40 TY60 TY120 TY150 TY220 TY280 TY380
Performance
Max intermittent pull KN 40 60 120 150 220 280 380
Max continuous pull KN 30 50 100 120 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5
Pull at max speed KN 20 25 50 60 90 120 170
Engine
Diesel kw(hp) 77(103) 77(103) 129(173) 129(173) 239(320) 298(400) 440(590)
Cooling system   Water
Electrical system V 24
Characteristics
Bull-wheel diameter mm 400 450 600 600 760 960 960
Groove number   7 7 10 10 10 11 11
Max rope diameter mm 16 18 24 24 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1600 1600 1600 1900
Total weight kg 3000 3500 4800 5500 6800 12800 13600
Overall dimension mm

3600*2600

*2200

3800*2100

*2300

4000*2300

*2300

4300*2300

*2400

5300*2360

*2750

5800*2300

*2700

6000*2600

*2800
