Product Details:
Payment & Shipping Terms:
|
| Product: | Running Boards Balanced Type For 2 Or 3 Conductors | Description: | One Rope Pulling Two Conductors |
|---|---|---|---|
| Rated Load: | 60kN | Pulley Wheel Width: | 75mm |
| High Light: | hv transmission line stringing tools,conductors transmission line stringing tools,hv overhead line stringing tools |
||

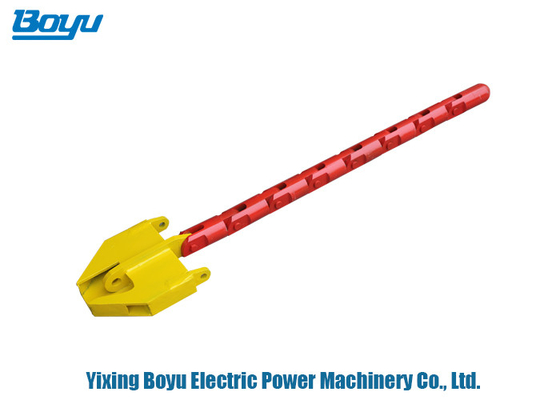

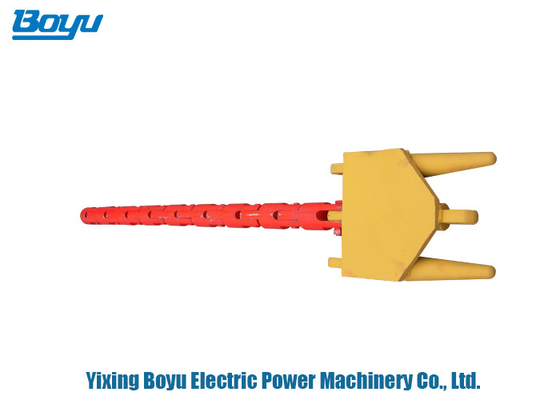

Transmission Line Stringing Tools Running Boards Balanced Type for 2 or 3 Conductors
|
TYSZ Head Boards The head board is designed to connect the pulling rope (max 28mm) with 2 to 5 bundled conductors. Special models with different characteristics can be designed according to customer's needs. |
|||||
| Model | Description | Rated load (kN) | Weight (kg) | Pulley wheel width (mm) | Remark |
| SZ2-6-75 | One rope pulling two conductors | 60 | 12.5 | 75 | Conductor separated |
| SZ2-8-100 | One rope pulling two conductors | 80 | 17 | 100 | |
| SZ2-13-110 | One rope pulling two conductors | 130 | 110 | 110 | |
| SZ2-18-125 | One rope pulling two conductors | 180 | 125 | 125 | |
| SZ3-8-75 | One rope pulling three conductors | 80 | 19 | 75 | |
| SZ3-10-100 | One rope pulling three conductors | 100 | 100 | ||
| SZ3-13-100 | One rope pulling three conductors | 130 | 100 | ||
| SZ3-18-110 | One rope pulling three conductors | 180 | 110 | ||
| SZ4-13-100 | One rope pulling four conductors | 130 | 96 | 100 | |
| SZ4-18-100 | One rope pulling four conductors | 180 | 90 | 100 | |
| SZ4-18-110 | One rope pulling four conductors | 180 | 90 | 110 | |
| SZ4-25-110 | One rope pulling four conductors | 250 | 105 | 110 | |
| SZ4-32-125 | One rope pulling four conductors | 320 | 150 | 125 | |
| SZ6-25-100 | One rope pulling six conductors | 250 | 140 | 100 | |
| SZ2A-8-75 | One rope pulling two conductors | 80 | 100 | 75 | Balance Pulley |
| SZ2A-8-100 | One rope pulling two conductors | 80 | 100 | 100 | |
| SZ2A-8-110 | One rope pulling two conductors | 80 | 100 | 110 | |
| SZ3A-8-75 | One rope pulling three conductors | 80 | 100 | 75 | |
| SZ3A-10-100 | One rope pulling three conductors | 100 | 114 | 100 | |
| SZ3A-13-110 | One rope pulling three conductors | 130 | 130 | 110 | |
| SZ3A-18-110 | One rope pulling three conductors | 180 | 140 | 110 | |
| SZ3A-18-125 | One rope pulling three conductors | 180 | 155 | 125 | |
| SZ4A-13-100 | One rope pulling four conductors | 130 | 127 | 100 | |
| SZ4A-13-110 | One rope pulling three conductors | 130 | 140 | 110 | |
| SZ4A-18-110 | One rope pulling four conductors | 180 | 155 | 110 | |
| SZ4A-18-125 | One rope pulling three conductors | 180 | 160 | 125 | |
