| Safety Factor: | 2.5K | Length: | 9-11m |
|---|---|---|---|
| Vertical Load: | 10-15kN | Weight: | 7.5kg |
| Diameter*wall: | 150X6mm | Type: | LBNXG150 Ginpoles Derricks |
| High Light: | ginpoles derricks transmission line stringing tools,15kn transmission line stringing tools,15kn overhead line stringing tools |
||

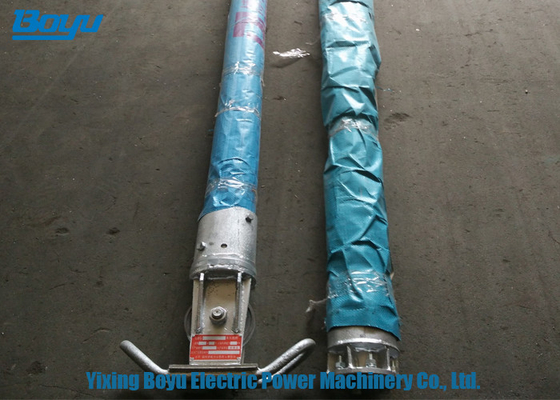

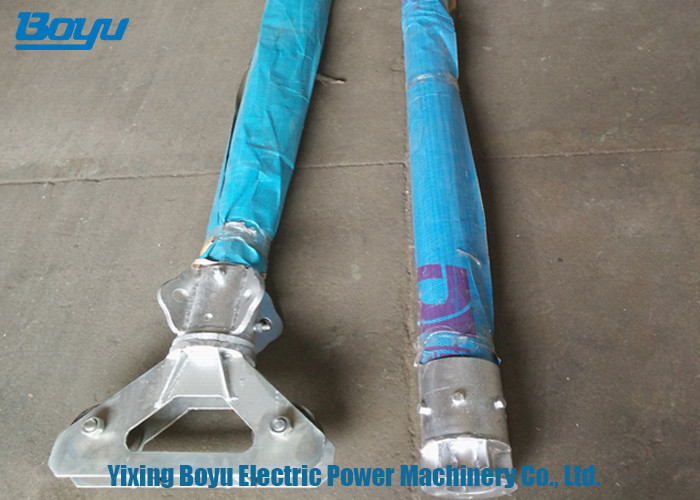

Transmission Line Stringing Tools LBNXG150 Ginpoles Derricks
| Inner-Suspended Tubular Gin Pole | |||||
| Model |
Length (M) |
Diameter*wall (mm) |
Vertical Load (KN) |
Safety Factor (K) |
Weight (kg) |
| LBNXG120 | 9-11 | 120X7 | 5-9 | 2.5 | 7.5 |
| LBNXG150 | 9-11 | 150X6 | 10-15 | 2.5 | 7.5 |
Uses:Apply to assemble and erect the tower and pole in transmission line construction.
