| Rated Load: | 20kN | Weight: | 0.55kg |
|---|---|---|---|
| Dimensions A: | 35mm | Dimensions B: | 120mm |
| Dimensions C: | 90mm | Dimensions D: | 14mm |
| Dimensions E: | 14mm | Product: | Swivel Joints Rotatable Steel Cable Connector |
| High Light: | stringing tools transmission line,stringing tools for transmission line,high performance overhead line stringing tools |
||

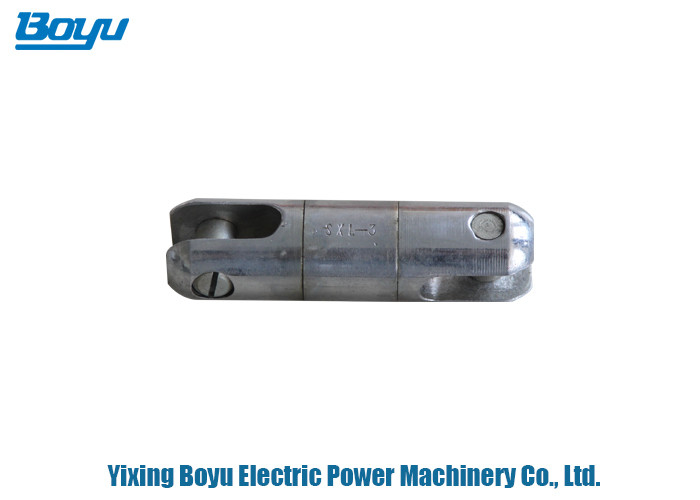

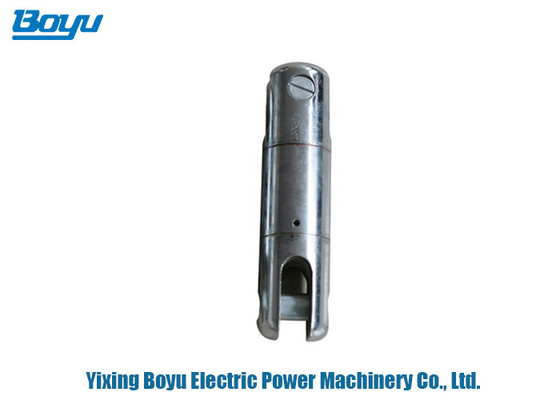

TYSLX-2 Swivel Joints Rotatable Steel Cable Connector for Transmission Line
TYSLX Swivel Joints
The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys.
| Model | Dimensions (mm) | Rated load | Weight | ||||
| A | B | C | D | E | (kN) | (kg) | |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SLX-13 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SLX-18 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SLX-25 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SLX-32 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
