| Product: | Rotatable Steel Cable Connector | Dimensions A: | 30mm |
|---|---|---|---|
| Dimensions B: | 100mm | Dimensions C: | 70mm |
| Dimensions D: | 12mm | Dimensions E: | 13mm |
| High Light: | precise transmission line stringing tools,convenient transmission line stringing tools,precise overhead line stringing tools |
||

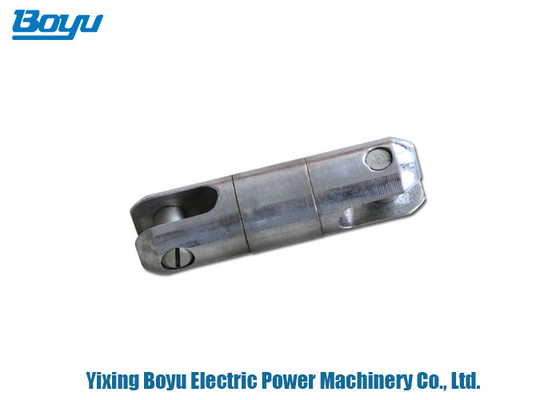

Transmission Line Stringing Tools Rotatable Steel Cable Connector
|

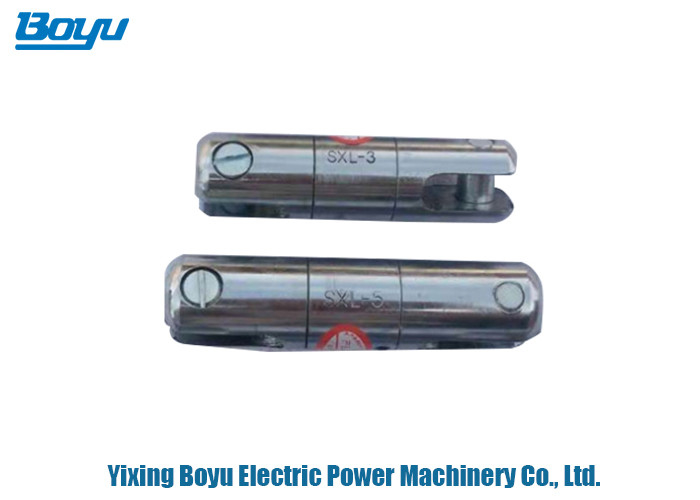

TYSLX Swivel Joints The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys. |
|||||||
| Model | Dimensions (mm) | Rated load | Weight | ||||
| A | B | C | D | E | (kN) | (kg) | |
| SLX-1 | 30 | 100 | 70 | 12 | 13 | 10 | 0.4 |
| SLX-2 | 35 | 120 | 90 | 14 | 14 | 20 | 0.55 |
| SLX-3 | 37 | 129 | 95 | 16 | 16 | 30 | 0.65 |
| SLX-5 | 42 | 154 | 116 | 18 | 17 | 50 | 1.5 |
| SLX-8 | 57 | 220 | 165 | 24 | 22 | 80 | 2.4 |
| SLX-13 | 62 | 248 | 192 | 26 | 24 | 130 | 3.5 |
| SLX-18 | 75 | 294 | 222 | 26 | 26 | 180 | 7.2 |
| SLX-25 | 85 | 331 | 251 | 30 | 30 | 250 | 10.6 |
| SLX-32 | 85 | 346 | 264 | 38 | 30 | 320 | 9.7 |
