Product Details:
Payment & Shipping Terms:
|
| Type: | Pulling Grips Single Open End | Conductor Size: | 120-150mm2 |
|---|---|---|---|
| OPGW Dia.: | 14.5-17.5mm | Rated Load: | 20kN |
| High Light: | portable transmission line stringing tools,time saving transmission line stringing tools,safe overhead line stringing tools |
||

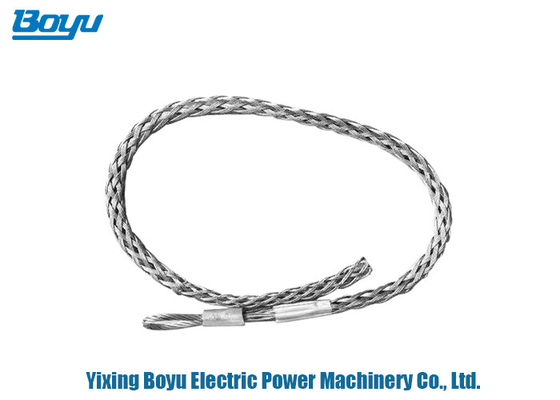

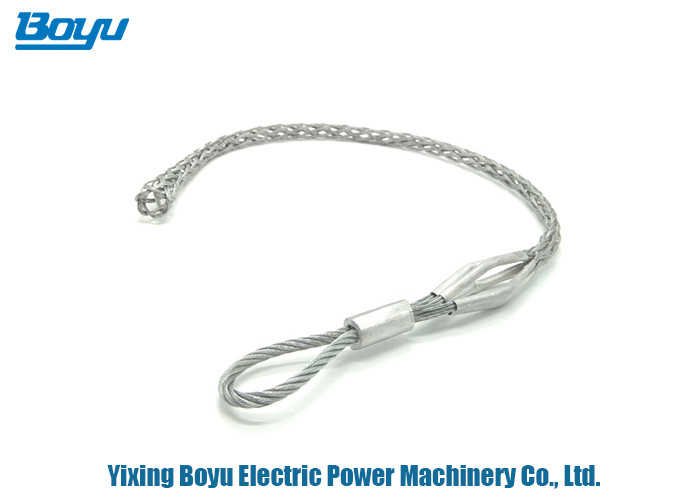

Pulling Grips Single Open End Temporary Mesh High Performance Sock Joints
The one head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.
| Model | Conductor size (mm2) | OPGW Dia.(mm) | Rated load (kN) | Breaking load (kN) |
| SLW-1 | 25-70 | 6-11 | 10 | 20 |
| SLW-1.5 | 70~90 | 11-16 | 15 | 30 |
| SLW-2 | 120~150 | 14.5-17.5 | 20 | 40 |
| SLW-2.5 | 185~240 | 18-22.5 | 25 | 50 |
| SLW-3 | 300~400 | 23-29 | 30 | 60 |
| SLW-4 | 500~630 | 30-35 | 40 | 80 |
| SLW-5 | 720 | 50 | 125 | |
| SLW-7 | 900 | 70 | 175 | |
| SLW-8 | 1000~1120 | 80 | 200 |
