Product Details:
Payment & Shipping Terms:
|
| Product: | Joints For Ropes Anti-bending Connector | Dimensions A: | 37mm |
|---|---|---|---|
| Dimensions D: | 17mm | Dimensions C: | 20mm |
| Dimensions B: | 76mm | Dimensions D: | 12mm |
| High Light: | high efficiency transmission line stringing tools,portable transmission line stringing tools,high efficiency overhead line stringing tools |
||

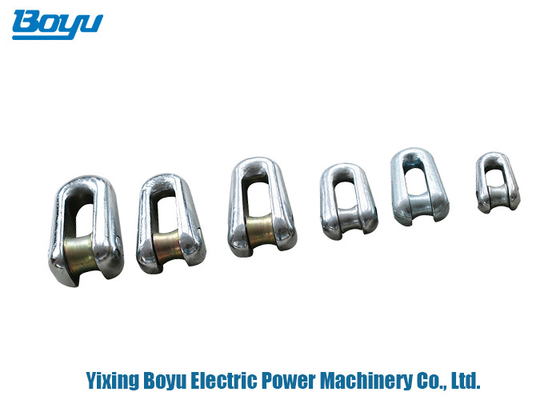

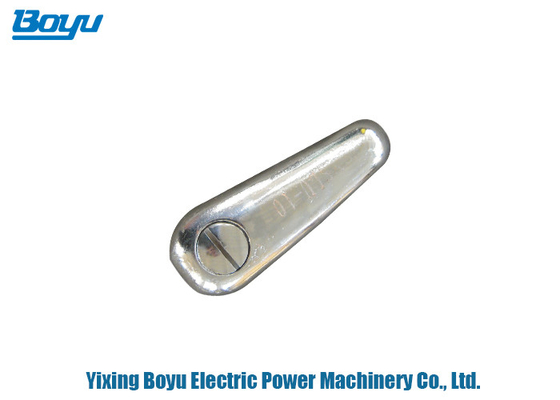

Transmission Line Stringing Tools Joints for Ropes Anti-bending Connector
TYSLU Connectors
The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel.
| Model | Dimensions (mm) | Rated load | Weight | |||||
| A | B | C | d | D | E | (kN) | (kg) | |
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 32 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 32 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
