Product Details:
Payment & Shipping Terms:
|
| Product: | Electric Power Line Connector | Dimensions A: | 36mm |
|---|---|---|---|
| Dimensions B: | 68mm | Dimensions C: | 18mm |
| Dimensions D: | 10mm | Dimensions D: | 14mm |
| High Light: | time-saving transmission line stringing tools,stringing tools manufacturers for transmission lines,portable overhead line stringing tools |
||

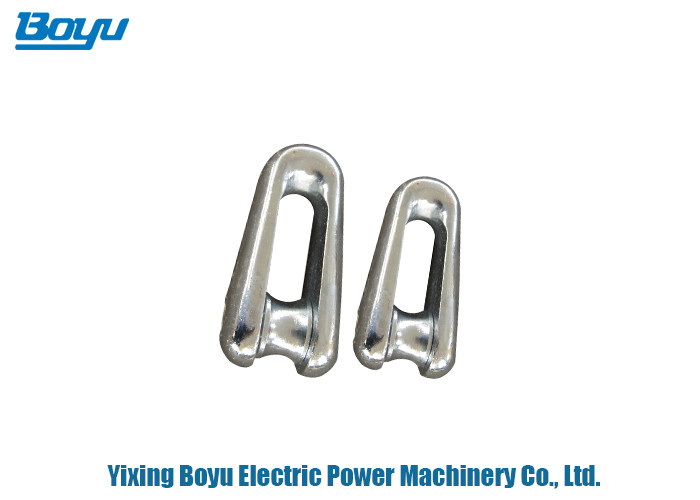

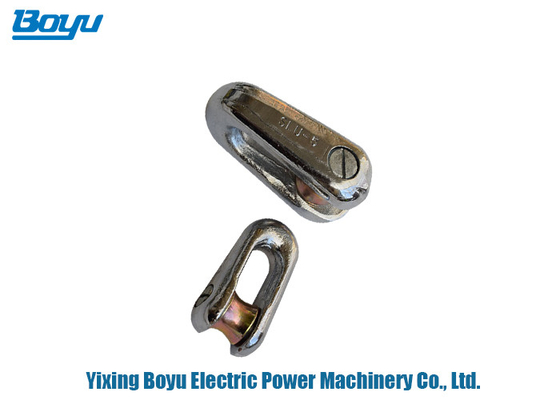

Transmission Line Stringing Tools Electric Power Line Connector Fixed Joints
|
TYSLU Connectors The connectors are specifically designed to connect pilot rope lengths or pulling rope lengths and to pass over the puller bull wheels. They are made of highly tensile galvanized steel. |
||||||||
| Model | Dimensions (mm) | Rated load | Weight | |||||
| A | B | C | d | D | E | (kN) | (kg) | |
| SLU-1 | 36 | 68 | 18 | 10 | 14 | 29 | 10 | 0.2 |
| SLU-3 | 37 | 76 | 20 | 12 | 17 | 31 | 30 | 0.22 |
| SLU-5 | 50 | 96 | 23 | 18 | 19 | 42 | 50 | 0.6 |
| SLU-8 | 56 | 110 | 28 | 20 | 22 | 50 | 80 | 0.8 |
| SLU-10 | 59 | 126 | 30 | 22 | 26 | 54 | 100 | 1.2 |
| SLU-13 | 61 | 134 | 32 | 24 | 27 | 56 | 130 | 1.3 |
| SLU-15 | 63 | 138 | 37 | 27 | 28 | 58 | 150 | 1.4 |
| SLU-25 | 80 | 178 | 44 | 32 | 35 | 72 | 250 | 3.0 |
| SLU-28 | 80 | 178 | 44 | 32 | 35 | 72 | 280 | 3.0 |
| SLU-32 | 85 | 186 | 42 | 30 | 38 | 80 | 320 | 3.9 |
