Light Aluminum Alloy Suspension Ladders Triangular Anchoring Ladders

Large Image : Light Aluminum Alloy Suspension Ladders Triangular Anchoring Ladders

Product Details:

Place of Origin:	China
Brand Name:	BOYU
Certification:	ISO9001
Model Number:	LGH-8S

Payment & Shipping Terms:

Minimum Order Quantity:	100pieces
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	15-35days
Payment Terms:	L/C, T/T
Supply Ability:	100000pieces/month.

Contact Now

Detailed Product Description

Length:	8m	Working Load:	150kg
Section Length:	4+4m	Section:	Triangular
Product:	Suspension Ladders Triangular Anchoring Ladders	Type:	Transmission Line Stringing Tools
Highlight:	Aluminum Alloy transmission line stringing tools , transmission line stringing tools Ladder , Aluminum Alloy overhead line stringing tools

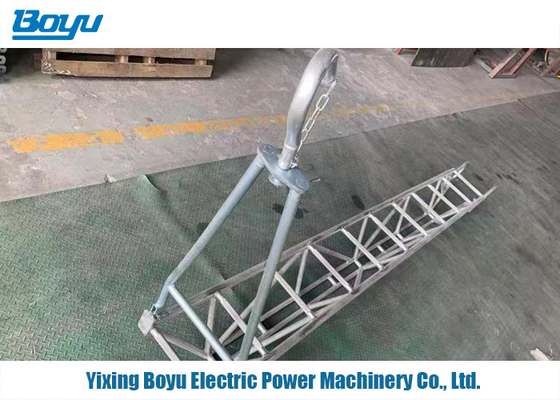

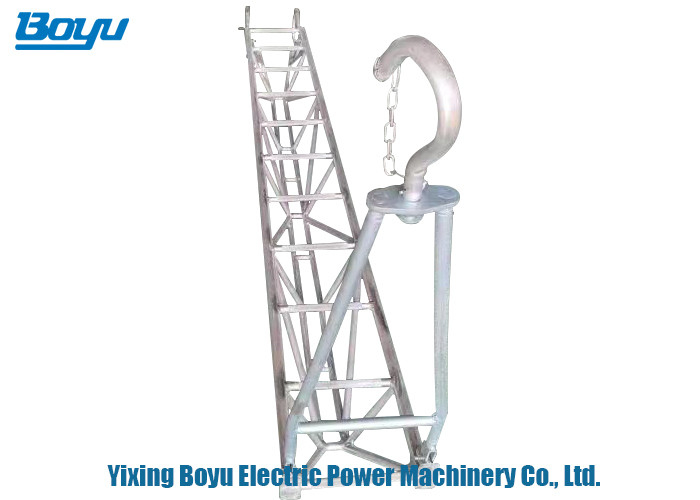

Light Aluminum Alloy Suspension Ladders Triangular Anchoring Ladders

Anchoring Ladders
Specifically designed for anchoring works.
The ladders are made of light aluminium alloy, with anti-slippery rungs and with galvanized steel suspension hooks. The ladders are supplied with a supplementary swivel hook to be located on the conductor, which allows the ladder to be used in horizontal position.
The ladders are available with triangular or trapezoidal section.
Model	Length	Section length	Working load	Section
Model	m	m	kg
LGH-4	4	4	150	Triangular
LGH-6	6	6	150	Triangular
LGH-6S	6	4+2	150	Triangular
LGH-8S	8	4+4	150	Triangular
LGH-3.5T	3.5	3.5	300	Trapezoidal
LGH-4.5T	4.5	4.5	300	Trapezoidal
LGH-6.5T	6.5	4.5+2	300	Trapezoidal
LGH-8T	8	4+4	300	Trapezoidal
Special models with different lengths are available upon request.

Light Aluminum Alloy Suspension Ladders Triangular Anchoring Ladders 0
