Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders

Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders
Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders

Large Image :  Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: LGH-6
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: Negotiable
Packaging Details: Container
Delivery Time: 15-35days
Payment Terms: L/C, T/T
Supply Ability: 100000pieces/month.
Contact Now
Detailed Product Description
Type: Transmission Line Stringing Tools Section: Triangular
Length: 6m Section Length: 6m
Product: Light Aluminum Alloy Anchoring Ladders Working Load: 150kg
Highlight:

Anchoring Ladders transmission line stringing tools

,

Power transmission line stringing tools

,

Anchoring Ladders overhead line stringing tools

Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders

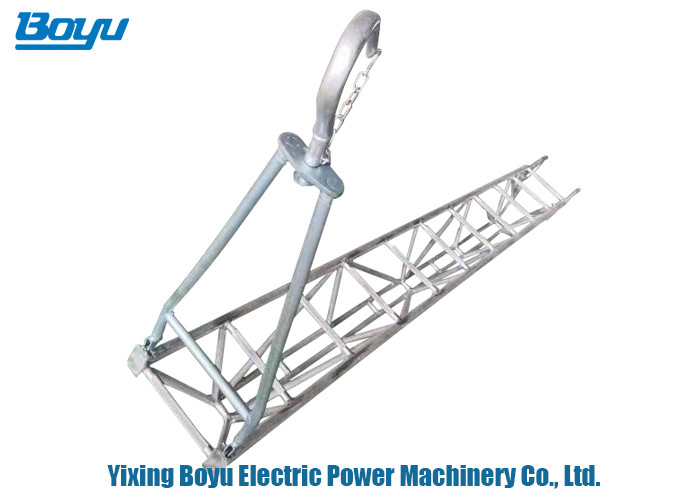

Anchoring Ladders

Specifically designed for anchoring works.

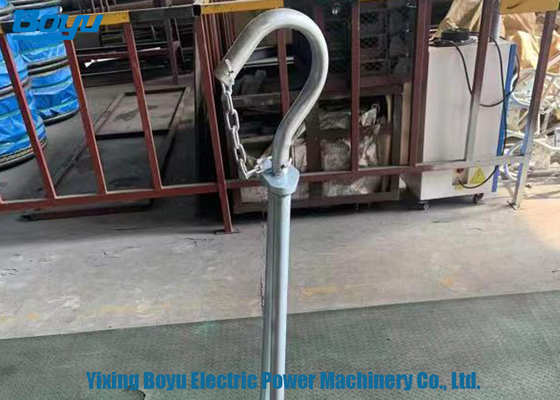

The ladders are made of light aluminium alloy, with anti-slippery rungs and with galvanized steel suspension hooks. The ladders are supplied with a supplementary swivel hook to be located on the conductor, which allows the ladder to be used in horizontal position.

The ladders are available with triangular or trapezoidal section.
Model Length Section length Working load Section
m m kg
LGH-4 4 4 150 Triangular
LGH-6 6 6 150 Triangular
LGH-6S 6 4+2 150 Triangular
LGH-8S 8 4+4 150 Triangular
LGH-3.5T 3.5 3.5 300 Trapezoidal
LGH-4.5T 4.5 4.5 300 Trapezoidal
LGH-6.5T 6.5 4.5+2 300 Trapezoidal
LGH-8T 8 4+4 300 Trapezoidal
Special models with different lengths are available upon request.







Transmission Line Stringing Tools Light Aluminum Alloy Anchoring Ladders 0
