| Type: | Transmission Line Stringing Tools | Product: | Anchoring Ladders |
|---|---|---|---|
| Length: | 4m | Section Length: | 4m |
| Working Load: | 150kg | Section: | Triangular |
| High Light: | Anchoring Ladders transmission line stringing tools,transmission line stringing tools Suspension Ladder,Anchoring Ladders overhead line stringing tools |
||
Transmission Line Stringing Tools Anchoring Ladders Suspension Ladder

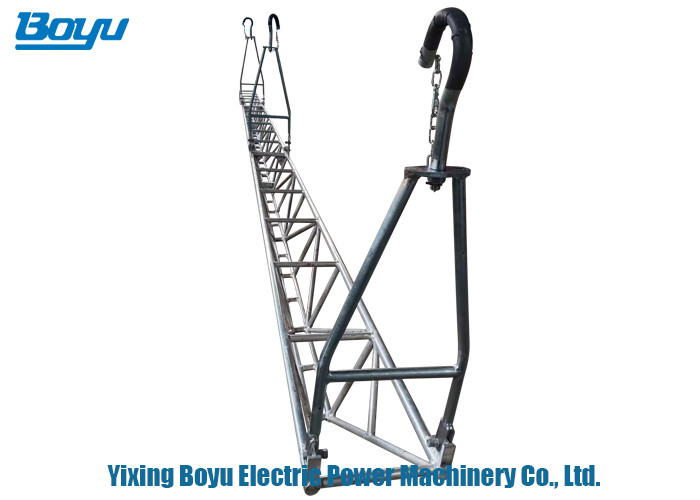

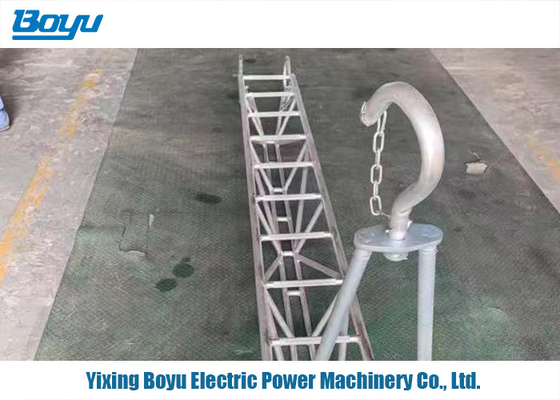

Anchoring Ladders
Specifically designed for anchoring works.
The ladders are made of light aluminium alloy, with anti-slippery rungs and with galvanized steel suspension hooks. The ladders are supplied with a supplementary swivel hook to be located on the conductor, which allows the ladder to be used in horizontal position.
The ladders are available with triangular or trapezoidal section.
| Model | Length | Section length | Working load | Section |
| m | m | kg | ||
| LGH-4 | 4 | 4 | 150 | Triangular |
| LGH-6 | 6 | 6 | 150 | Triangular |
| LGH-6S | 6 | 4+2 | 150 | Triangular |
| LGH-8S | 8 | 4+4 | 150 | Triangular |
| LGH-3.5T | 3.5 | 3.5 | 300 | Trapezoidal |
| LGH-4.5T | 4.5 | 4.5 | 300 | Trapezoidal |
| LGH-6.5T | 6.5 | 4.5+2 | 300 | Trapezoidal |
| LGH-8T | 8 | 4+4 | 300 | Trapezoidal |
Special models with different lengths are available upon request.
