Product Details:
Payment & Shipping Terms:
|
| Length: | 2.5m | Working Load: | 150kg |
|---|---|---|---|
| Weight: | 5.0kg | Type: | Transmission Line Stringing Tools |
| Usage: | Transmission Line Construction | Product: | Suspension Ladder |
| High Light: | Transmission Line Stringing Ladder,Hook Suspension Ladder 2.5m,150kg Hook Suspension Ladder |
||

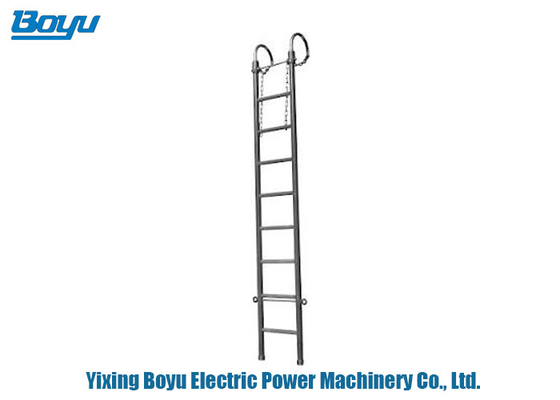

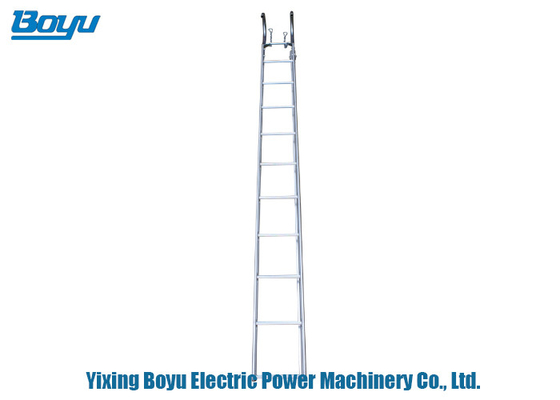

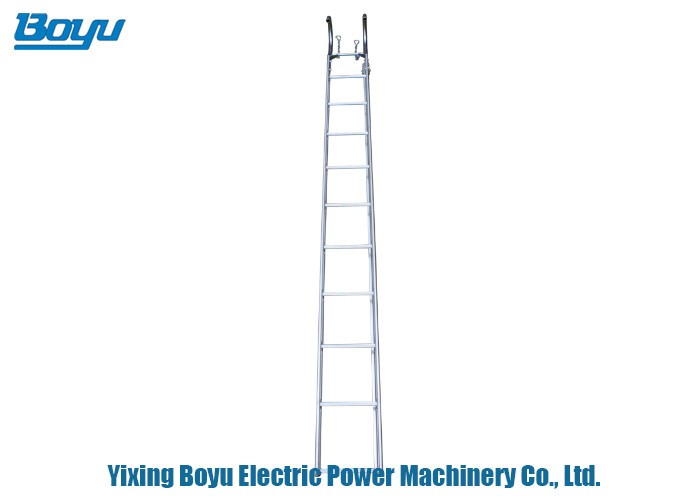

Transmission Line Stringing Tools Ladder Hook Suspension Ladder
Aluminum alloy ladder, light and easy to carry, "D" shaped antiskid pedal, Utility pole antiskid strip with upper hook
SUSPENSION LADDER
For vertical use at the suspension tower
Welded suspension ladder made of extruded aluminum pipes
Fluted rungs
Tower hook of galvanized steel with safety chain
Optional
Guide rail on the left for fall protection system
Fall protection
| Model | Length (m) | Section length (m) | Working load (kg) | Weight (kg) |
| P-LGS-25 | 2.5 | 150 | 5.0 | |
| P-LGS-30 | 3 | 5.5 | ||
| P-LGS-35 | 3.5 | 6.1 | ||
| P-LGS-40 | 4 | 6.6 | ||
| P-LGE-40S | 4 | 2.7 | 13 | |
| P-LGE-50S | 5 | 3.7 | 15 | |
| P-LGE-60S | 6 | 3.9 | 18 | |
| P-LGE-70S | 7 | 4.2 | 20 |
