Product Details:
Payment & Shipping Terms:
|
| Type: | Reel Trailer | Hook Up: | Adj. Pintle Eye |
|---|---|---|---|
| Reel Capacity (Dia. X Width): | 54" X 63" | Dimensions (L X W X H): | 116" X 89" X 45" |
| Tires: | E78-14 | Gross Vehicle Weight Rating: | 2240 Lbs |
| High Light: | Transmission Line Stringing Tools Reel Trailer,54"x63" Reel Trailer,2240 lbs Reel Trailer |
||

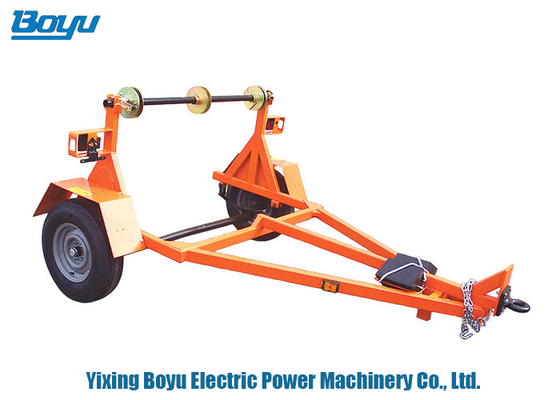

Transmission Line Stringing Tools Reel Trailer 54" x 63" Reel Capacity
Adjustable Pintle Eye Single-Arbor Trailer features ST 205-75R14C tires.
Please Note:
Vehicular brakes are not provided with trailer
A loading dock is required for trailer delivery (Additional Charges for Lift Gate)
excludes wheel chalks and holder.
Price reflects drop ship only. Shipping from our stock incurs freight inbound costs.
Reel Capacity(diam x w): 94-96 x 63"
Gross Vehicle Weight: 2,999 (lbs.)
Overall Dimensions: 124 x 89 x 63"
Shipping Weight: 620 (lbs.)

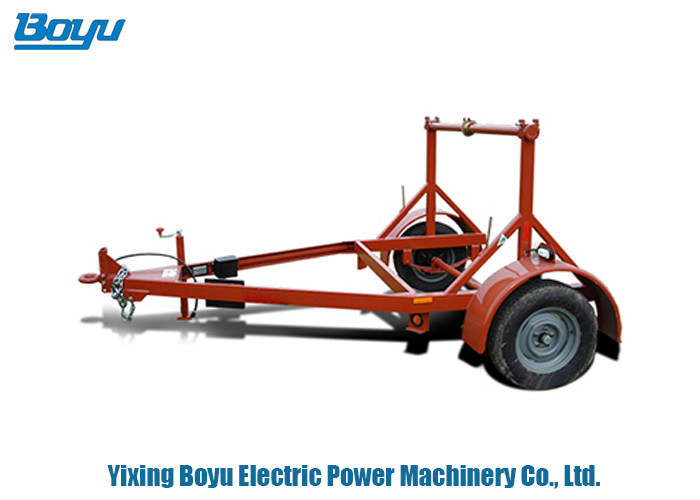

These single reel arbor trailers feature 63" of usable arbor space. Each has a 3500 lb. drop axle for a sleek profile with a low center of gravity. The #6354 accommodates reels up to 54" in diameter. Frames on the #6372 and #6394 are built higher to accommodate reel diameters of 72" and 94" respectively (see chart for additional specifications). Available with either adjustable pintle eye or 2" ball coupler. Standard equipment: License plate bracket, leaf springs, safety chains, reflectors, light group, reel collars (1 set), primed and painted high-visibility orange.Optional equipment: Fenders can be purchased with a trailer or added at a later date. All single reel trailer frames are manufactured with fender attachment angles. Fenders are sold in sets (#6300F). Hall’s Safety Equipment also stocks a Cable Reel Turntable.
All cable reel trailers must ship by truck. Additional truck freight charges will be added to the order.*Some states require title transfers.
Consumers are responsible for extra fees.
| Cat. # | Hook Up | Reel Capacity (Dia. x Width) | Dimensions (L x W x H) | Tires | Gross Vehicle Weight Rating | Shipping Weight |
| P-6354P | Adj. Pintle Eye | 54" x 63" | 116" x 89" x 45" | E78-14 | 2,240 lbs | 375 lbs |
| P-6354B | 2" Ball Coupler | 54" x 63" | 116" x 89" x 45" | E78-14 | 2,240 lbs | 375 lbs |
| P-6372P | Adj. Pintle Eye | 72" x 63" | 118" x 89" x 52" | E78-14 | 2,240 lbs | 405 lbs |
| P-6372B | 2" Ball Coupler | 72" x 63" | 118" x 89" x 52" | E78-14 | 2,240 lbs | 405 lbs |
| P-6394P | Adj. Pintle Eye | 94"-96" x 63" | 124" x 89" x 63" | G78-14C | 2,999 lbs | 620 lbs |
| P-6394B | 2" Ball Coupler | 94"-96" x 63" | 124" x 89" x 63" | G78-14C | 2,999 lbs | 620 lbs |
